Caframo Pitched Blade Impeller, 40 mm dia Blade
Impeller, 40 mm dia Blade, 400 L x 8 mm dia, PTFE Blade, Stainless Steel Shaft Core, PTFE-coated Shaft, Axial Flow Pattern, Left Hand Blade Rotation, Pitched Blade Type, For BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers
- Manufacturer Part No: A185
- SECO Part No: CAF-A185
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :

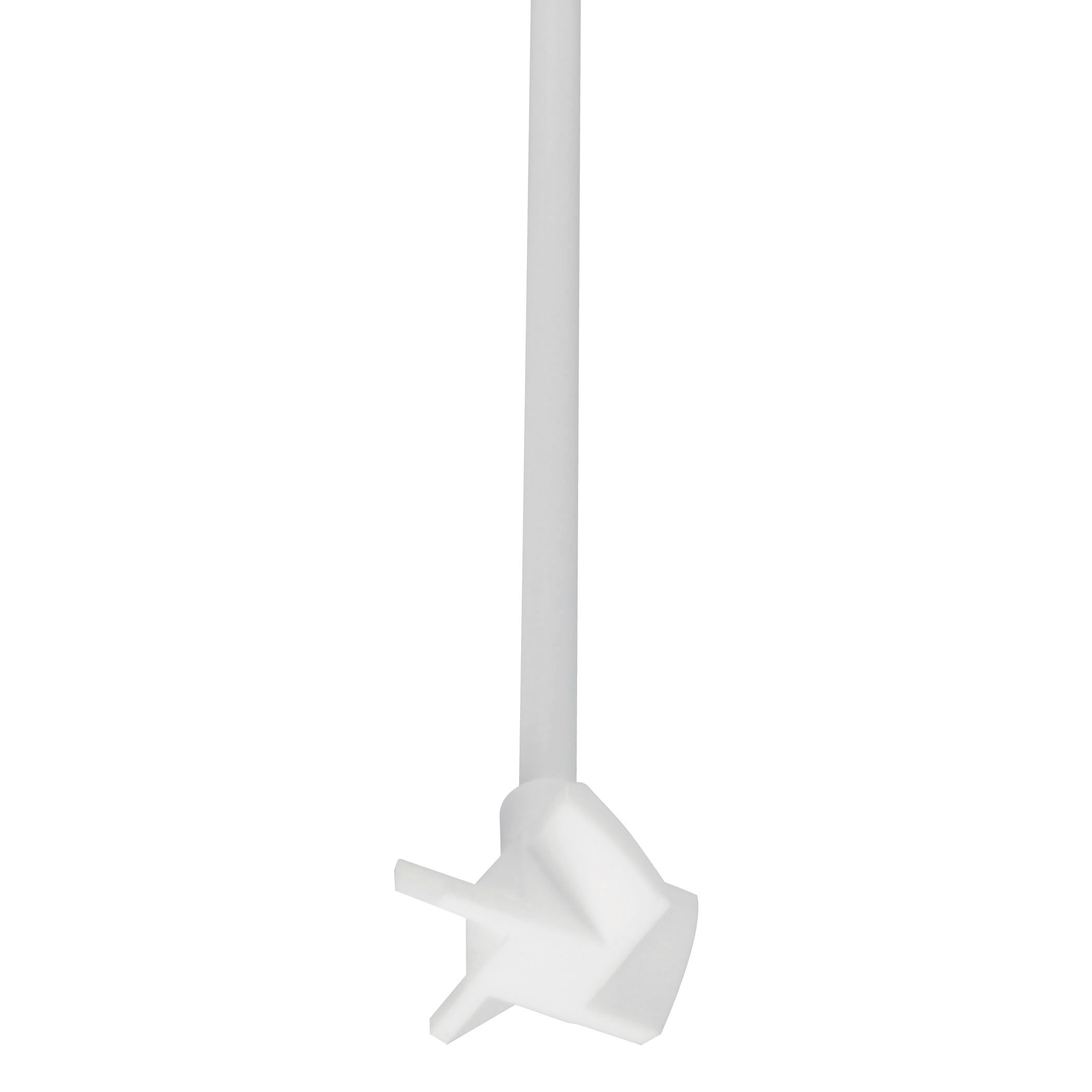

An axial flow PTFE impeller for high speed, low viscosity mixing. With 45° pitched blades, the 40 mm (1.5") dia impeller is attached to an 8 mm (0.3125") dia PTFE-coated shaft. The stainless steel core of the shaft provides stability. PTFE (polytetrafluoroethylene) can be used under the most adverse conditions. This high performance coating is insoluble, non-contaminating and has exceptional thermal-resistance. It is easy to clean, does not scratch other surfaces and is unbreakable.
| Material | : | PTFE Blade, Stainless Steel Shaft Core |
| For Use With | : | For BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers |
| Shaft Diameter | : | 8 mm |
| Shaft Length | : | 400 mm |
| Weight | : | 113 g |
| Type | : | Pitched Blade |
| Blade Dimension | : | 40 mm dia |
| Blade Rotation | : | Left Hand |
| Finish | : | PTFE-coated Shaft |
| Flow Pattern | : | Axial |
- High heat resistance
- Autoclavable
- Scratch- and chip-resistant
- Poor adhesion - materials release easily from impeller
- One piece
- Excellent chemical (including acidic and caustic) resistance
- Provides stability to impeller
- Suitable for heated processes
- Good for biotechnology processes
- Low risk of particles introduced to batch
- Easy-to clean
- Quick to insert and begin mixing
- Right hand rotation (solution pushed downwards when propeller spins clockwise)
- 4 Blades
