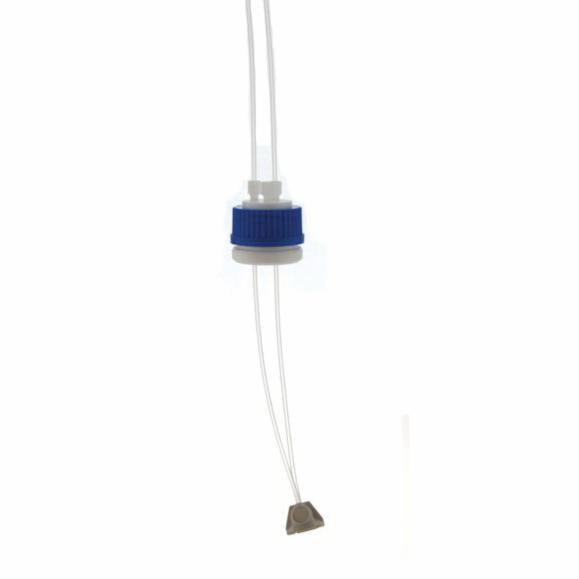

DWK Life Sciences (Kimble) Ultra-Ware® Safety System Three Kit, with GL 45 to Solvent Bottle Adapter
Safety System Three Kit, With GL 45 to Solvent Bottle Adapter, For Use With HPLC Pump, Glass
- Manufacturer Part No: 953930-0000
- SECO Part No: DWK-953930-0000
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Safety system 3 is a unique solvent bottle adapter that is made from PBT and converts DWK Life Sciences (Kimble) Ultra-Ware® GL-45 mobile phase caps to standard 4 L solvent bottles for direct connection to your HPLC pump. It is also available without the solvent bottle-to-GL-45 thread adapter.
| Material | : | Glass |
| Thread Finish | : | GL-45 |
| For Use With | : | HPLC Pump |
| Includes | : | 953913-5000 (1) Economy 3-hole Cap, GL-45, 953907-0000 (1) Solvent Bottle Adapter, GL-45 (Included with 953930-0000 Only), 953916-3002 (1) Combination Inlet/Sparge Filter, 2 µm, PEEK™, 420821-0018 (2) Flangeless Nut, ETFE, 0.25 to 28 x 0.12", 420822-0018 (2) Flangeless Ferrule, ETFE, 0.12" (Optional), 953913-0001 (1) Vent Port Plug, ETFE, 0.25 to 28", 420823-0018 (1) Tubing, FEP PTFE, 0.12 OD x 0.06" ID x 10' |
- Ultraware® economy three hole cap is manufactured from PTFE with a TFE/propylene o-ring and a polypropylene screw collar
- Three connecting threads on top of the cap use standard 1/4" 28 flangeless fittings
- Two ports have 0.12" through-holes for connection to the inlet/sparge filter
- The third port has a 0.06" through-hole used as a vent port during sparging
- Included with your safety system 3 is the unique Bottom-of-the-Bottle™ inlet/sparge filter
- The filter combines the functions of an inlet filter with a sparger in a single, convenient device
- Sparging bubbles are prevented from entering the mobile phase stream while allowing the pump to draw all but a few milliliters of solvent from the reservoir or bottle
- All PEEK construction makes it ideal for virtually all mobile phases
- Supplied with 2 µm porosity frits and connections for 0.12" OD tubing
