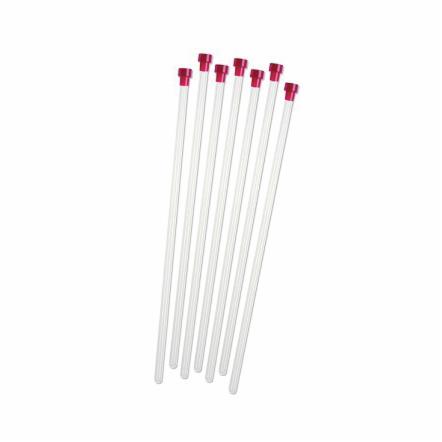

DWK Life Sciences (Kimble) Highest Quality NMR Tube, 7" L
NMR Tube, 5 mm Size, 7" L, 4.20 ID x 4.97 mm OD, Borosilicate Glass, 0.375 mm Wall Thickness, 13 µ Camber (TIR), 25 µ Concentricity (TIR), 527-PP-7 Wilmad Equivalent, Highest Quality, With Polyethylene Cap, 400 MHz Field Strength
- Manufacturer Part No: 897235-0000
- SECO Part No: 897235-0000
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Our DWK Life Sciences (Kimble) Kimax®-HQ NMR tubes are our highest quality NMR tubes and are 100% gauged for wall thickness, concentricity and camber specifications. These tubes are ideal for sealing directly to vacuum manifolds, joints or valves.
| Diameter | : | 4.2 ID x 4.97 mm OD |
| Material | : | Borosilicate Glass |
| Cap Material | : | Polyethylene |
| Size | : | 5 mm |
| Length | : | 7" |
| Wall Thickness | : | 0.375 mm |
| Camber (TIR) | : | 13 µ |
| Concentricity (TIR) | : | 25 µ |
| Field Strength | : | 400 MHz |
| Includes | : | 500 ml Amber Glass PVC Bottle in Poly Pail |
- Attached polyethylene caps
- Sandblasted marking spot
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP type I and ASTM E438, type I, class A requirements
- OD 4.97 (+0/-0.013) mm
- ID 4.20 (+0.013/-0.0000) mm
