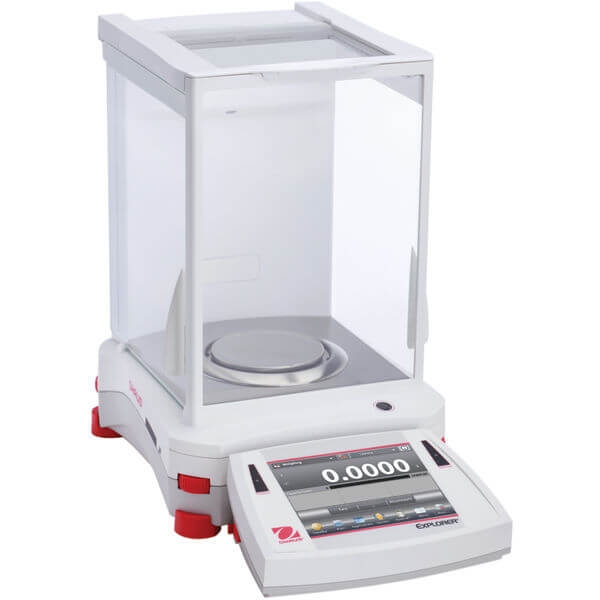

Explorer® EX224 Model Analytical Balance, 220 g, 0.1 mg Resolution
Analytical Balance, 220 g, 13.8" H x 9.1" W x 15.5" D, Metal Base, ABS Top Housing, Stainless Steel Pan, 0.1 mg Readability, ±0.0002 g Linearity, =2 sec Stabilization Time, EX224 Model
- Manufacturer Part No: 83021332
- SECO Part No: OHS-83021332
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
The OHAUS Explorer Series of analytical balances combine modern features and design elements to offer unmatched functionality in a line of high-performance balances unlike any other on the market. These smart and intuitive balances and all of their intelligent features simplify even the most complex laboratory measurements.
| Capacity | : | 220 g |
| Dimension | : | 13.8" H x 9.1" W x 15.5" D |
| Material | : | Metal Base, ABS Housing |
| Resolution | : | 0.1 mg |
| Pan Material | : | Stainless Steel |
| Linearity | : | ±0.0002 g |
| Calibration Type | : | Internal Calibration AutoCal™ - Automatic |
| Stabilization Time | : | =2 sec |
| Display Type | : | 5.7" Full-color Touchscreen VGA |
| Operating Condition | : | 50°F – 86°F, 85% RH, Non-Condensing |
| Connectivity | : | RS232 and USB (included) or second RS232/Ethernet (sold separately), GLP/GMP Data Output with Real-time Clock |
| Weight | : | 15.2 lb |
| Draftshield | : | Yes |
| Minimum Weight | : | 0.16 g |
| Model | : | EX224 |
| Power Source | : | AC Adapter (Included) |
| Tare Range | : | To Capacity by Subtraction |
| With | : | Draftshield, In-use Cover, AC Adapter, RS232 and USB, Auxiliary Display Model as an Accessory |
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Animal/Dynamic Weighing, Filling, Totalization/Statistics, Formulation, Differential Weighing, Density Determination, Peak Hold, Ingredient Costing, Pipette Adjustment, SQC
Display
5.7" (145 mm) Full-color VGA graphic touchscreen display with user-controlled brightness
Operation
AC adapter (included)
Communication
RS232 and USB (included) or second RS232/Ethernet (accessories sold separately) . GLP/GMP data output with real-time clock.
Construction
Metal base, ABS top housing, stainless steel pan, glass draftshield with top mounted side doors & flip/sliding top door, illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, 4 touchless sensors, in-use cover
Design Features
Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, auto standby, up to 14 operating languages
Specification Sheeet
