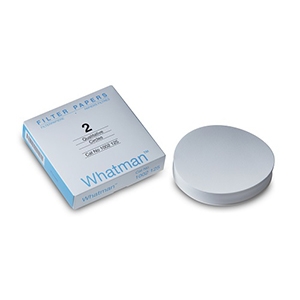

Qualitative Filter Paper, 320 mm dia, Cellulose, Grade 2

Qualitative Filter Paper, 320 mm dia, Cellulose, Grade 2, Standard Grade Type, Circle Format, 190 µm Thickness, 8 µm Particle Retention in Liquid, 97 g/m2 Nominal Basis Weight, 240 secs/100 ml(Herzberg) Filtration Speed

  • Manufacturer Part No: 1002-320
  • SECO Part No: 12-4670-11
  • Sold As:
  • Availability: loading

A standard grade filter used for monitoring specific contaminants in the atmosphere and in soil testing. These cellulose filters are used in qualitative analytical techniques to determine and identify materials. Prepleated qualitative filters are also available, which give improved flow rate and increased loading capacity compared to equivalent flat filters. Grade 2: 8 µm. Slightly more retentive than Grade 1 with a corresponding increase in filtration time (i.e., slightly slower filtration speed). More absorbent than Grade 1. In addition to general filtration in the 8 µm particle size range, the extra absorbency is utilized, for example, to hold soil nutrient in plant growth trials. Also used for monitoring specific contaminants in the atmosphere and in soil testing. Also available prepleated as Grade 2V.

Diameter : 320 mm
Grade : Grade 2
Material : Cellulose
Ash Content : 0.0006%
Grade Type : Standard
Type : Qualitative
Dry Burst Pressure : 110 kPa/16 psi
Filtration Speed : 240 sec/100 ml(Herzberg)
Format : Circle
Nominal Air Flow Rate : 20 sec/100 ml/in2
Nominal Basis Weight : 97 g/m2
Particle Retention in Liquid : 8 µm
Thickness : 190 µm
Typical Water Flow Rate : 38 ml/min
Wet Burst Pressure : 2 kPa/0.29 psi
Loading Capacity : N
Application: Used for monitoring specific contaminants in the atmosphere and in soil testing
