DWK Life Sciences (Kimble) 24005-50
Share
  1. pin-int
Email Print

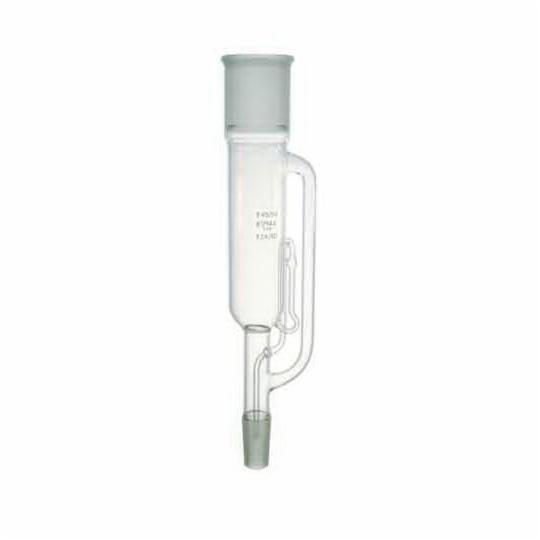

DWK Life Sciences (Kimble) Soxhlet Extractor, 500 ml

Soxhlet Extractor, 500 ml, 720 mm H, 113 mm H Siphon, 50 mm ID Extraction Tube, 24/40 Standard Taper Joint, For Use with 43 x 123 mm Paper Thimbles, 45 x 130 mm Fritted Thimbles

  • Manufacturer Part No: 24005-50
  • SECO Part No: 12-3706-97
  • Sold As:
  • Availability: loading

The Soxhlet extractor was designed for separating an analyte with limited solubility in a particular solvent from an insoluble compound.

Capacity : 500 ml
Height : 720 mm
Siphon Tube Height : 113 mm
Diameter : 50 mm
Standard Taper Joint : 24/40
For Use With : For 43 x 123 mm Paper and 45 x 130 mm Fritted Thimbles
  • Standard taper joint size between Soxhlet tube and condenser for 24005-30 is 34/45, for 24005-40 is 45/50, and for 24005-50 is 55/50
  • Standard taper joint between the Soxhlet tube and flask is 24/40
  • Thimble size is determined by the ID of the extraction tube
  • Hose connections on condenser accept 0.3125" ID flexible tubing
  • Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP type I and ASTM E438, type I, class A requirements
