LabBest Glass Fiber Automatic Syringe Filter, 5 µm Pore Size, 25 mm dia Membrane
Automatic Syringe Filter, 5 µm Pore Size, 30 dia x 21.3 mm, 25 mm dia Membrane, Glass Fiber, Gray Polypropylene Housing, 650 kPa Maximum Pressure, 3.55 cm2 Filtration Area, Autoclavable, Luer-Lock and Luer-Slip Connector
- Manufacturer Part No: FGF5025AC
- SECO Part No: 12-4380A-57
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :

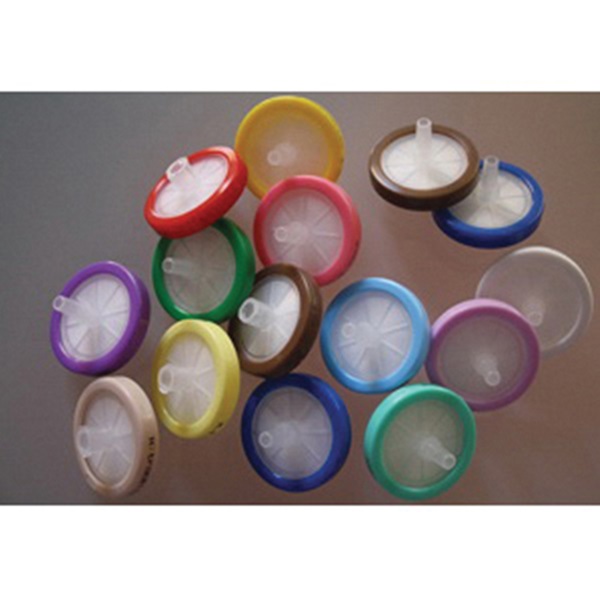

Our syringe filters are made using polypropylene medical-grade housings with luer-lock and luer-slip fittings in compliance with ISO 594-1. Each filter is sealed, using an external ring insert, to maintain the membrane integrity and best performance. Filters are color-coded for easy identification. The certified filters are supplied with a certificate of quality, batch-to-batch, to guarantee product performance and quality. The filters are visually inspected following quality specifications. Each batch of filters is tested for external dimensions, bubble point, filter integrity, water flow rate, UV extractable, and compliance with all technical procedures, manufacturing specifications, and quality controls for release. Tests are performed by an independent laboratory.
| Dimension | : | 30 dia x 21.3 mm |
| Membrane Diameter | : | 25 mm |
| Autoclavable | : | Yes |
| Hold-up Volume | : | <150 µl |
| Sample Volume | : | >10 ml |
| Membrane Material | : | Glass Fiber |
| Housing Material | : | Polypropylene |
| Filtration Area | : | 3.55 cm2 |
| Maximum Pressure | : | 650 kPa |
| Sterility | : | No |
| Protein Adsorption | : | Low |
| Pore Size | : | 5 µm |
| Membrane | : | Glass Fiber |
| Operating Temperature | : | 150°C Water |
| Type | : | Automatic |
| Housing Color | : | Gray |
| Water Flow Rate | : | >105 ml/min/cm2 |
| Connector Type | : | Luer-Lock and Luer-Slip |
| Weight | : | 2.90 g |
- Characteristics-fast filtration flow, eliminates sample contamination
- Chemical compatibility-good chemical compatibility
- Suitable for manual and automated filtrations
