Ranger™ 7000 30088840
Share
  1. pin-int
Email Print

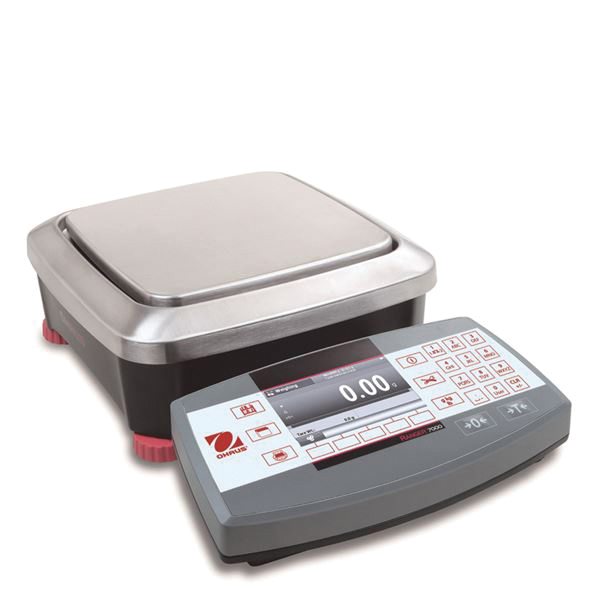

Ranger® 7000 R71MHD3 Model Stainless Steel Platform Bench Scale, 16.5 L x 11 W x 4.5" H, 6 lb

Bench Scale, 6 lb, 16.5 L x 11 W x 4.5" H, R71MHD3 Model, 8.3 L x 8.3" W Stainless Steel Platform, 0.00002 lb Readability, 0.0002 lb Certified Repeatability, ±0.02 g Linearity, AC Power Source, 10.9 cm TFT Graphic LCD Display

  • Manufacturer Part No: 30088840
  • SECO Part No: OHS-30088840
  • Sold As:
  • Availability: loading

For Ranger 7000, there is one resounding theme: It offers the best of every ingenious feature that make Ohaus® industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes and connectivity options, as well as the largest memory library of any industrial bench scale in the Ohaus® portfolio.

Capacity : 6 lb
Resolution : 0.00002 lb
Linearity : ±0.02 g
Display : 10.9 cm TFT Graphic LCD
Platform Dimension : 210 L x 210 mm W
Platform Material : Stainless Steel
Battery Life : 9 Hours With Rechargeable Battery
Operating Temperature : 10 to 30°C, 80% RH, Non-condensing
Application : For Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis
Model : R71MHD3
Communication : USB, RS232, 2nd RS232, Ethernet
Height : 4.5"
Internal Calibration : InCal™ - Semi Automatic
Length : 16.5"
Output : 3 In/4 Out digital I/O
Power Source : AC Power
Protection Rating : IP 54
Repeatability (Certified) : 0.0002 lb
Tare Range : To Capacity by Subtraction
Weighing Capacity : 6 lb
Weight : 16 lb
Width : 11"
  • Display: 4.3" full-color WQVGA graphic display with user-controlled brightness
  • Operation - AC power or rechargeable battery
  • Communication - easy access communication port including standard USB and RS232 and an optional third port of RS232 or ethernet, GLP/GMP data output with real time clock, data transfer function
  • Construction - modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
  • Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator
  • Overload/Underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare
  • Second scale input
  • In-use cover included
  • Simplifying even the most complex industrial applications
  • NTEP Certified, Measurement Canada Approved
