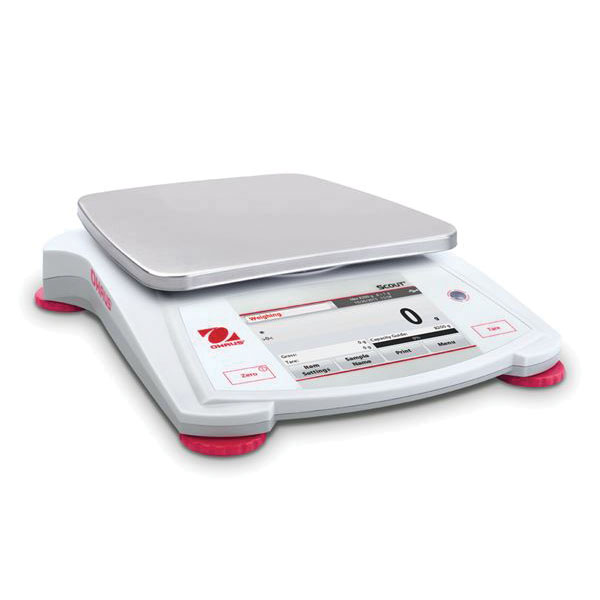

Scout® STX8200 Model Portable Balance, 8200 g, 1 g Resolution
Portable Balance, 8200 g, 54 H x 202 W x 224 mm D, ABS Housing, 170 W x 140 mm D Stainless Steel Pan, 1 g Readability, 1 g Repeatability, 1 g Linearity, 1 sec Stabilization Time, Model STX8200, Full-color VGA Touchscreen Display
- Manufacturer Part No: 30253016
- SECO Part No: OHS-30253016
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Ideal for laboratory and industrial applications, the Ohaus® Scout® features an easy to navigate color touchscreen display and a slim design which allows stackable storage. Geared for superior performance with fast stabilization time and high resolution weighing results, these portable balances set a new standard for a broad range of weighing applications. Features also include superior overload protection and expanded connectivity options.
| Dimension | : | 54 H x 202 W x 224 mm D |
| Capacity | : | 8200 g |
| Model | : | STX8200 |
| Material | : | ABS Housing |
| Weight | : | 1 kg |
| Battery Life | : | 6 Hours |
| Battery Type | : | 4 x AA Battery |
| Calibration Mass | : | 8 kg (Span), 4 kg, 8 kg (Linearity) |
| Calibration Type | : | User Selectable External Span or Linearity Calibration/Digital with External Weight |
| Connectivity | : | RS232, USB Host, USB Device, Ethernet or Bluetooth® |
| Display Type | : | 4.3" Full-color VGA Graphic Touchscreen Display with User-controlled Brightness |
| Draftshield | : | No |
| Electrical Requirement | : | 100 to 240 V, 50/60 Hz |
| Linearity | : | 1 g |
| Operating Condition | : | 10 to 40°C, 10 to 80% RH, Non-condensing, Upto 2000 m Altitude |
| Overload Capacity | : | 10 Times The Rated Capacity |
| Platform Material | : | Stainless Steel |
| Platform Dimension | : | 170 W x 140 mm D |
| Power Source | : | AC Adapter or Battery Powered |
| Resolution | : | 1 g |
| Repeatability | : | 1 g |
| Stabilization Time | : | 1 sec |
| Storage | : | -20 to 55°C, 10% to 90% RH, Non-condensing |
| Tare Range | : | Full Capacity by Subtraction |
| Weighing Unit | : | mg, g, kg, ct, N, oz, ozt, dwt, lb, lb:oz, grn, hkt, sgt, twt, tical, tola, customer unit 1 |
- Quick and efficient navigation with the informative color touchscreen display
- Large, resilient color touchscreen allows for effortless operation of the Scout® through its informative icon driven menu structure, guiding the user through every step of the weighing application
- Fast weighing speed and high resolution deliver repeatable and reliable results
- Stabilization time as fast as 1 sec means increased productivity in your facility
- Equipped with advanced weighing technology, the Scout® also ensures repeatable and reliable weighing results
- Superior overload protection and stackable storage drive overall durability
- Integrated superior overload protection system rated at 10 times the capacity protects the balance in rugged and demanding environments
- The space-saving, slim design allows for stackable storage
- Multiple connectivity options for greater flexibility in communication
- With expanded connectivity options including RS-232, USB host, USB device, Ethernet and Bluetooth®, the Scout® provides added versatility to your data collection and transfer needs
- Integrated security slot prevents theft
- The integral weigh below hook on the bottom of the Scout® allows for density determination or specific gravity calculations
- The Scout® can be locked into a specific configuration using the lockswitch
- Application modes: Weighing, parts counting, percent weighing, check weighing, animal/dynamic weighing, totalization, density determination, display hold, mole weighing
- Slip-resistant and adjustable feet, leveling bubble
- Mechanical and software overload/underload protection, stability indicator, auto tare, low battery indicator
- Auto shut-off, user selectable printing options, user selectable communication settings
- IEC/EN 61010-1, CAN/CSA C22.2 Number 61010-1, UL Standard Number 61010-1, IEC/EN 61326-1 Class B, FCC Part 15 Class B, Industry Canada ICES-003 Class B Electromagnetic Compatibility
