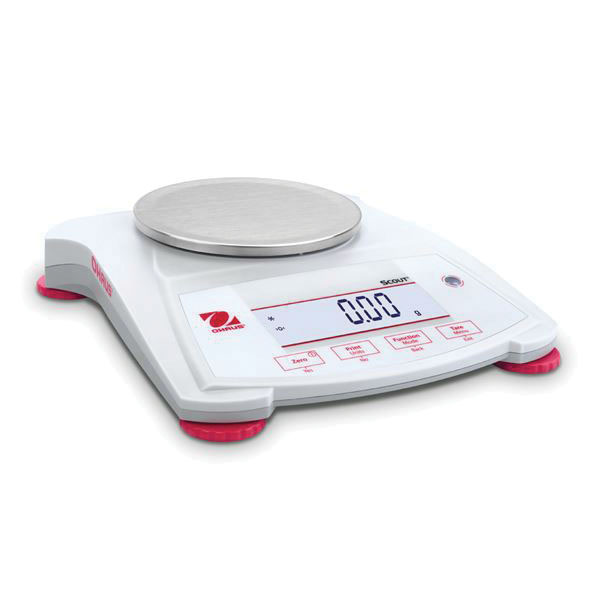

Scout® SPX422 Model Portable Balance, 420 g, 0.01 g Resolution
Portable Balance, 420 g, 54 H x 202 W x 224 mm D, ABS Housing, 120 mm dia Stainless Steel Pan, 0.01 g Readability, 0.01 g Repeatability, 0.01 g Linearity, 1 sec Stabilization Time, Model SPX422, Liquid Crystal Display
- Manufacturer Part No: 30253020
- SECO Part No: OHS-30253020
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Ideal for laboratory and industrial applications, the Ohaus® Scout® comes in a slim, stackable design with large backlit LCD. Features include superior overload protection, multiple weighing units and application modes. Geared for high performance in your facility with fast stabilization time and high resolution weighing results, these portable balances set a new standard in laboratory and industrial weighing.
| Dimension | : | 54 H x 202 W x 224 mm D |
| Capacity | : | 420 g |
| Model | : | SPX422 |
| Material | : | ABS Housing |
| Weight | : | 1 kg |
| Battery Life | : | 80 Hours |
| Battery Type | : | 4 x AA Battery |
| Calibration Mass | : | 200 g (Span), 200, 400 g (Linearity) |
| Calibration Type | : | User Selectable External Span or Linearity Calibration/Digital with External Weight |
| Connectivity | : | RS232, USB Host, USB Device, Ethernet or Bluetooth® |
| Display Type | : | 0.78" Digits Liquid Crystal Display (LCD) with Backlight |
| Draftshield | : | No |
| Electrical Requirement | : | 100 to 240 V, 50/60 Hz |
| Linearity | : | 0.01 g |
| Operating Condition | : | 10 to 40°C, 10 to 80% RH, Non-condensing, Upto 2000 m Altitude |
| Overload Capacity | : | 10 Times The Rated Capacity |
| Platform Material | : | Stainless Steel |
| Platform Dimension | : | 120 mm dia |
| Power Source | : | AC Adapter or Battery Powered |
| Resolution | : | 0.01 g |
| Repeatability | : | 0.01 g |
| Stabilization Time | : | 1 sec |
| Storage | : | -20 to 55°C, 10% to 90% RH, Non-condensing |
| Tare Range | : | Full Capacity by Subtraction |
| Weighing Unit | : | g, kg, ct, N, oz, ozt, dwt, lb, lb:oz, grn |
- Bright backlit LCD and 4 button control enable efficient operation and ease of use
- Combined with a simplified 4 button operation, the Scout's large backlit display increases readability in low light working conditions, and is easier to view from a distance
- Bolstered by superior overload protection and impact-resistant pan support
- Integrated superior overload protection and impact-resistant pan support safeguard against shock and overloading the balance in rugged and demanding environments
- Better performance and higher capacities widen the range of weighing applications
- Stabilization time as fast as 1 sec and advanced weighing technology, lead to improved productivity in your facility
- Increased capacity unlocks a wider range of weighing applications
- Integrated security slot prevents theft
- The integral weigh below hook on the bottom of the Scout® allows for density determination or specific gravity calculations
- The Scout® can be locked into a specific configuration using the lockswitch
- Application modes: Weighing, parts counting, percent weighing, check weighing, totalization, display hold
- Slip-resistant and adjustable feet, leveling bubble
- Mechanical and software overload/underload protection, stability indicator, auto tare, low battery indicator
- Auto shut-off, user selectable printing options, user selectable communication settings
- IEC/EN 61010-1, CAN/CSA C22.2 Number 61010-1, UL Standard Number 61010-1, IEC/EN 61326-1 Class B, FCC Part 15 Class B, Industry Canada ICES-003 Class B Electromagnetic Compatibility
Brochure
