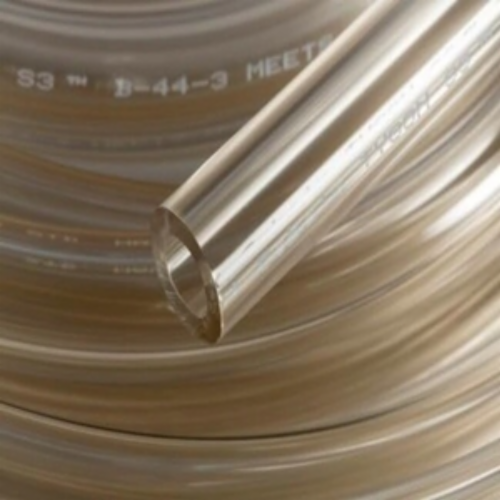

Tubing, 50' L, 0.25 ID x 0.37" OD, Clear, Tygon, 0.06" Wall Thickness, 1" Maximum Ben Radius, 34 psi at 73°F Maximum Working Pressure, B-44-3 Series, Plastic, Flexible, Beverage Grade, Broad Chemical Resistance, Lightweight
Clear, flexible tubing for beverage transfer- Tygon S3 ™ B-44-3 from Saint-Gobain Performance Plastics is now phthalate-free. Saint-Gobain is proud to be among the first companies to offer sustainable flexible tubing products. The bio-based Tygon S3™ line combines the high performance standards customers demand with an eco-friendly tubing design. Versatile, high-performance Tubing Tygon S3™ B-44-3 is specially formulated for transferring a wide variety of beverages including soft drinks, fruit juices, flavored teas and bottled water. In virtually all cases, Tygon S3™ B-44-3 will not affect the taste or odor of products transferred through it, while its excellent non-wetting properties facilitate complete drainage and permit simple flush-cleaning. Many of the unique properties inherent to Tygon S3 '" B-44-3 also apply to a wide variety of complex applications, ranging from fine cosmetic production to the dispensing of water-based printing inks found in the publishing industry. The versatility and proven performance of Tygon S3™ B-44-3 have made it today's most widely specified clear, flexible plastic tubing. Lightweight and flexible- light in weight and easy to handle, Tygon S3™ B-44-3 can be put into service quickly. It readily bends to accommodate abrupt corners and obstructions, requiring a minimum of couplings and fittings. Its flexibility can save up to one-third the footage and much of the labor required to install rigid stainless steel or plastic piping. Clear as Glass- The glass-like clarity of Tygon S3™ B-44-3 allows the user to see product flow through it, so visual monitoring of flow is easy. This is particularly helpful in controlling or adjusting flow during processing. Different sizes available Tygon S3- ™ B-44-3 is available in sizes ranging from 0.06" ID to 3.5" OD - all through our nationwide network of general plastics distributors. Leave it to Saint-Gobain Performance Plastics to make it convenient to select the right tubing for your application.
Material | : | Tygon |
Diameter | : | 0.25 ID x 0.37" OD |
Color | : | Clear |
Specific Gravity | : | 1.21 |
Wall Thickness | : | 0.06" |
Tensile Strength | : | 2200 psi |
Length | : | 50' |
Application | : | For Beverage Dispensing, Bag-in-box, Dairy Processing, Food Dispensing, Beverage Transfer |
Brittleness Temperature | : | -32°F |
Durometer Hardness | : | 66 (Shore A), IS sec |
Maximum Ben Radius | : | 1" |
Maximum Working Pressure | : | 34 psi at 73°F |
Operating Temperature | : | 165°F |
Series | : | B-44-3 |
Tear Resistance | : | 43.8 kN/m |
Tensile Set | : | 57% |
Tensile Stress | : | 1,379 psi at 200% Elongation |
Ultimate Elongation | : | 390% |
Vacuum Rating | : | 25" of Mercury at 73°F |
Water Absorption | : | 0.22% 24 hr at 73°F |
