A&D Weighing GX-6100
Share
  1. pin-int
Email Print

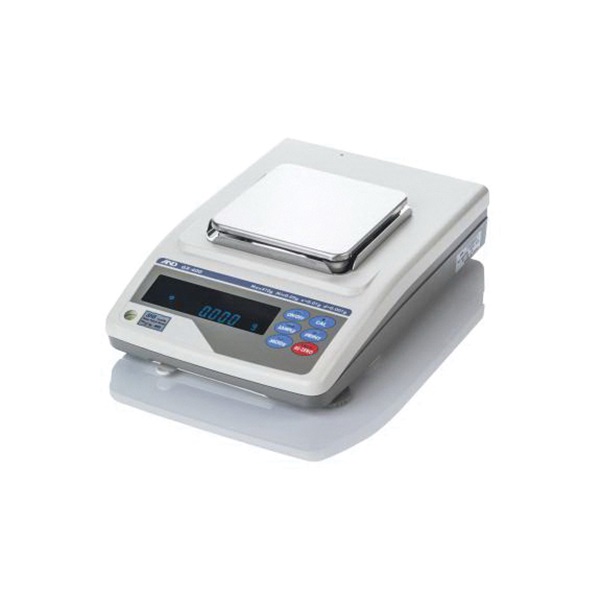

A&D Weighing GX/GF Series Internal Calibration Precision Balance, 6100 g, 0.001 g Resolution

Precision Balance, 6100 g, 163 H x 163 W x 207 mm D, Die Cast Aluminum, 128 x 128 mm Stainless Steel Pan, 0.001 g Readability, 0.001 g Repeatability, ±0.003 g Linearity, 1 sec (Fast Mode) Stabilization Time, Vacuum Fluorescent Display (VFD)

  • Manufacturer Part No: GX-6100
  • SECO Part No: 16-2352-08
  • Sold As:
  • Availability: loading
Capacity : 6100 g
Dimension : 163 H x 163 W x 207 mm D
Material : Die Cast Aluminum
Platform Material : Stainless Steel
Platform Dimension : 128 x 128 mm
Resolution : 0.001 g
Repeatability : 0.001 g
Linearity : ±0.003 g
Calibration Type : Internal
Stabilization Time : 1 sec (Fast Mode)
Weighing Unit : g, oz, lb, ozt, ct, mom, dwt, grain, N, pcs
Sensitivity Drift : ±2 ppm/°C
Display Type : Vacuum Fluorescent Display (VFD)
Display Refresh : 5 times/sec, 10 times/sec or 20 times/sec
Minimum Unit Weight : 0.01 g
Number of Samples : 10, 25, 50 or 100 Pieces
Operating Condition : 5 to 40°C Temperature, Less Than 85% Relative Humidity (Non-condensing)
Interface : RS-232C
Weight : 5.1 kg
IP Rating : IP54
Power Requirement : AC Adapter
Connectivity : RS-232C Interface
Sensing Method : Super Hybrid Sensor (SHS)
Minimum % Display : 0.01%, 0.1%, 1%
Minimum 100% Weight : 1 g
Model : GX/GF Series
Electrical Requirement : 11 VA

Advanced Sensor Technology for Reliable Results

Smart SHS® is the latest advancement in hybrid weigh cell design.

  • Increased productivity with 1 second stabilization time
  • Lower cost of ownership due to reduced number of parts and maintenance accessibility

Easy Diagnostics at the Touch of a Button

Electronically Controlled Load performs a self diagnostic check and an internal repeatability test without an external weight in less than 2 minutes.

  • Easily integrate a diagnostic check into your operation procedures
  • Streamline a manual and time consuming verification process
  • Piece of mind that your balance is meeting specifications even in difficult environments

Ensure Compliance with QuickMin-S

Determine minimum sample weight in any given environment with QuickMin-S. If a sample is weighed beneath the determined minimum weight, Min-S Alert will flash on the display ensuring compliance with USP 41.

  • Easily calculate the minimum sample weight to USP 41 at the installation location
  • Takes the guess work out of knowing what minimum sample can be weighed on the balance

Durable and Hygienic Construction

Built–to-last durability provides increased protection and more stable performance in the lab or factory.

  • Die-cast aluminum top and bottom housing provides extra stability and durability
  • Large stainless steel weigh pan and dust plate can be easily removed for cleaning
  • Overload protection and Impact Shock Detection increase protection of weigh cell increasing the lifetime of your balance
