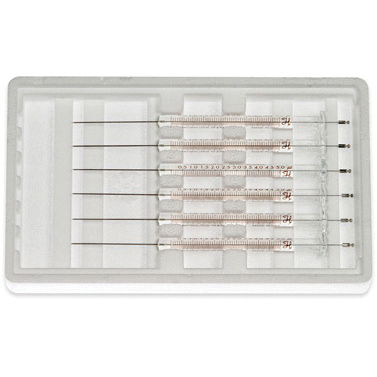

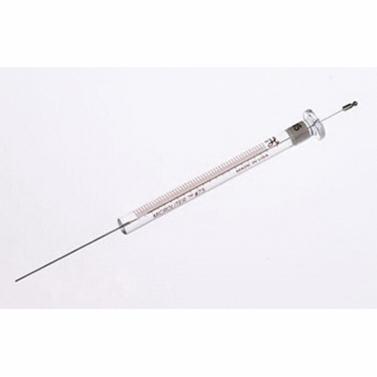

Agilent 75 Model AS Point Style Microliter Syringe with Cemented Needle, 43.4 mm L, 0.25 ID x 0.64 mm OD, 6/pk
Microliter Syringe, 5 µl, 43.4 mm L, 0.25 ID x 0.64 mm OD, 0.343 ID x 6.6 mm OD Barrel, 23s ga Gauge, 700 Series, 75 Model, AS Point Style, Cemented Needle Termination, SST, Borosilicate Glass Fluid Path, Stainless Steel Plunger, 6/pk
- Manufacturer Part No: 87990
- SECO Part No: 17-1412-12
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Microliter syringes are used with liquid only. They feature a stainless steel plunger which is individually fitted to the glass barrel. The result is a liquid tight seal with nearly frictionless movement. These syringes are ideal for organic samples that are not prone to precipitation, crystallization, or bonding with glass. Plungers and barrels are not interchangeable or replaceable. The 700 series syringe is the original hand-fitted Hamilton® syringe. The stainless steel plunger is manufactured to fit the glass barrel with a tolerance less than three thousandths of a millimeter, resulting in unsurpassed syringe life. This series of syringes is ideal for dispensing volumes from 0.5 µl up to 500 µl. A variety of different terminations and needle options are available.
| Accuracy | : | ±1% |
| Autoclavable | : | No |
| Barrel Diameter | : | 0.343 ID x 6.6 mm OD |
| Fluid Path | : | Stainless Steel, Borosilicate Glass |
| Gas Sterilizable | : | Yes |
| Gauge | : | 23s ga |
| Material | : | Stainless Steel Plunger |
| Model | : | 75 |
| Needle Diameter | : | 0.25 ID x 0.64 mm OD |
| Needle Length | : | 43.4 mm |
| Needle Type | : | Cemented |
| Point Style | : | AS |
| Pressure | : | 2000 psig |
| Standard Needle Dead Volume | : | 0.46 µl |
| Syringe Series | : | 700 |
| Syringe Type | : | Microliter |
| Temperature Range | : | 10 to 50°C |
| Termination | : | Cemented Needle |
| Volume | : | 5 µl |
- For low-volume syringes
- Conical, non-coring designed to withstand multiple injections
