Caframo Manual Stand with Casters, 99 to 145 cm Height
Manual Stand, 99 to 145 cm Height, Carbon Steel, Painted, 122 cm dia Vessel, 6.4 mm Thickness, with Four 14 x 25 mm Slots and 250 mm Center Mounting Holes Secured with 13 mm Anchor Bolts, Adjustable Height, Portable, With Casters
- Manufacturer Part No: A118
- SECO Part No: 22-2162-04
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :

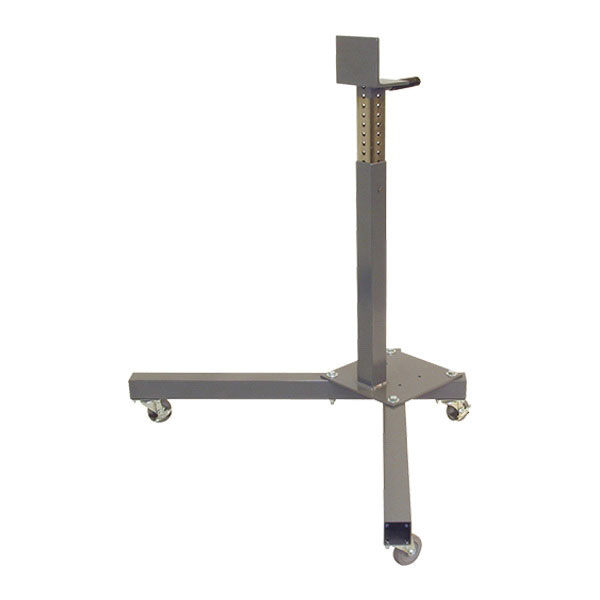

This manual lift, heavy-duty stand and base provides a solid mount for the Caframo crossover when mixing in drums or tanks upto 122 cm dia. This stand comes with a removable caster base which allows the stand to be installed permanently to the floor or any surface. The four swiveling caster base provides smooth travel and easy portability. When relocation is complete, two casters lock in place. Height is manually adjusted, in one inch increments secured in place by a clevis pin. The vertical mounting plate provides a clamping surface for the C-clamp to attach to - easy one person installation.
| Material | : | Carbon Steel, Painted |
| Caster Base Footprint | : | 102 x 102 cm |
| Square Base Footprint | : | 30.5 x 30.5 cm |
| Square Base Mounting | : | 6.4 mm Thickness, with Four 14 x 25 mm Slots and 250 mm Center Mounting Holes Secured with 13 mm Anchor Bolts |
| Stand Height | : | 99 to 145 cm |
| Vessel | : | 122 cm Maximum dia |
| Weight Capacity | : | 91 kg |
- Heavy gauge plate steel & square tubing
- Portable
- Adjustable height
- Durable stand to use with 1540 crossover mixer
- Easily move mixer without dismounting
- Adaptable to use with a variety of vessels and equipment
