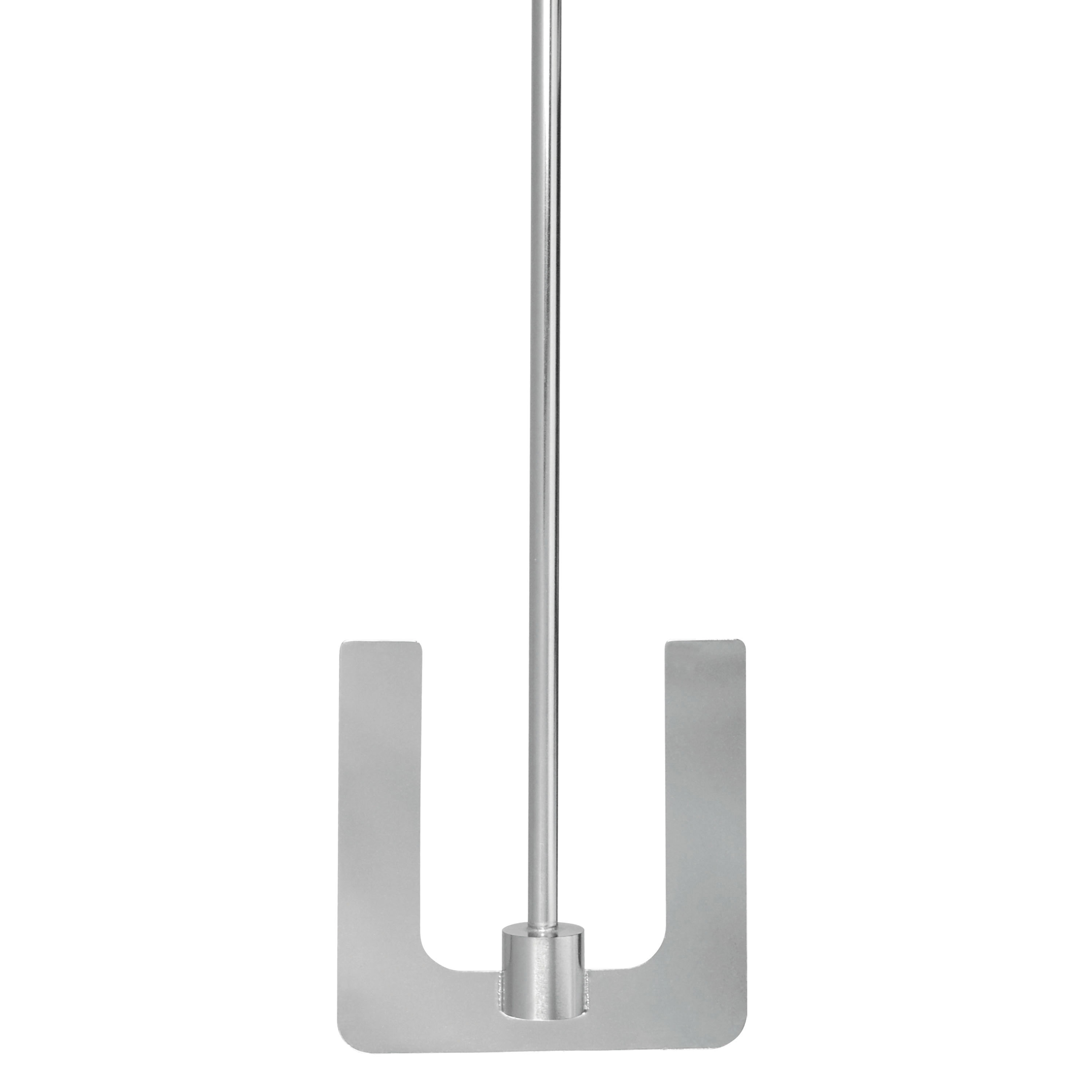

Caframo Anchor Paddle Impeller, 125 x 125 mm Blade
Impeller, 125 x 125 mm Blade, 914 L x 9.5 mm dia, Electropolished 316L Stainless Steel, Tangential Flow Pattern, Anchor Paddle Type, For 1540 Mixer, BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers
- Manufacturer Part No: U055
- SECO Part No: 22-2166-02
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
This tangential flow impeller is effective for low speed, high viscosity mixing. The 125 x 125 mm (5 x 5") anchor blade is welded to a 9.5 mm 0.375") dia shaft, all electropolished 316L stainless steel. Sometimes referred to as a "sweep", the high shear at the edges makes it a good choice to use close to the vessel wall.
| Material | : | 316L Stainless Steel |
| For Use With | : | For 1540 Mixer, BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers |
| Shaft Diameter | : | 9.5 mm |
| Shaft Length | : | 914 mm |
| Weight | : | 300 g |
| Type | : | Anchor Paddle |
| Blade Dimension | : | 125 x 125 mm |
| Finish | : | Electropolished |
| Flow Pattern | : | Tangential |
- Welded to shaft
- Effective for low speed high viscosity mixing
- Chemically inert and corrosion resistant
- One piece - quick to insert and begin mixing
