Caframo A114
Share
  1. pin-int
Email Print

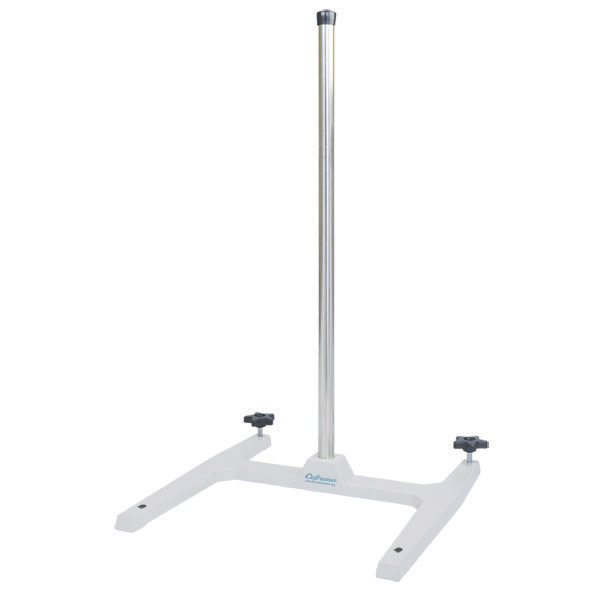

Caframo System Stand, 25 dia x 1200 mm L Rod

System Stand, 25 dia x 1200 mm L Rod, 304 Stainless Steel Tube, 430 x 415 mm Base Footprint, Cast Zinc-Aluminum Alloy Coated with Chemical Resistant Epoxy Paint, Wide Base and H configuration, Excellent Stability

  • Manufacturer Part No: A114
  • SECO Part No: A114
  • Sold As:
  • Availability: loading

Our popular safety stand adapted to support additional apparatus for process monitoring and chemical synthesis. The base accommodates a central 25 mm dia stand rod, and up to two additional 16 mm dia stand rods A300 (purchased separately). Portable and adaptable to address changing work spaces, equipment, and priorities. Length of the central stand rod is 1200 mm. The cast zinc-aluminum alloy base is coated for protection from corrosion and chemical spills.

Rod Diameter : 25 mm
Rod Length : 1200 mm
Rod Material : 304 Stainless Steel Tube
Base Footprint : 430 x 415 mm
Base Material : Cast Zinc-Aluminum Alloy Coated with Chemical Resistant Epoxy Paint
Weight : 5 kg
  • Wide base and H configuration
  • Cast zinc-aluminum alloy coated with chemical resistant epoxy paint
  • Compatible with three lengths of stand rods
  • Rods interchangeable using same allen key
  • Threaded holes in base for installation of A300 rod
  • Excellent stability
  • Chemical and corrosion resistant - durable and easy to clean
  • Flexibility to mount stirrer higher for taller vessels and reaction systems
  • Easy-to adapt to process needs
  • Option for one or two A300 rods to support additional apparatus such as manifolds and condensers
  • pdf Catalog /ASSETS/DOCUMENTS/ITEMS/EN/A110.pdf
