Caframo Anchor Paddle Impeller, 80 mm dia Blade
Impeller, 80 mm dia Blade, 400 L x 8 mm dia, PTFE Blade, Stainless Steel Shaft Core, PTFE-coated Shaft, Tangential Flow Pattern, Anchor Paddle Type, For BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers
- Manufacturer Part No: A183
- SECO Part No: CAF-A183
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :

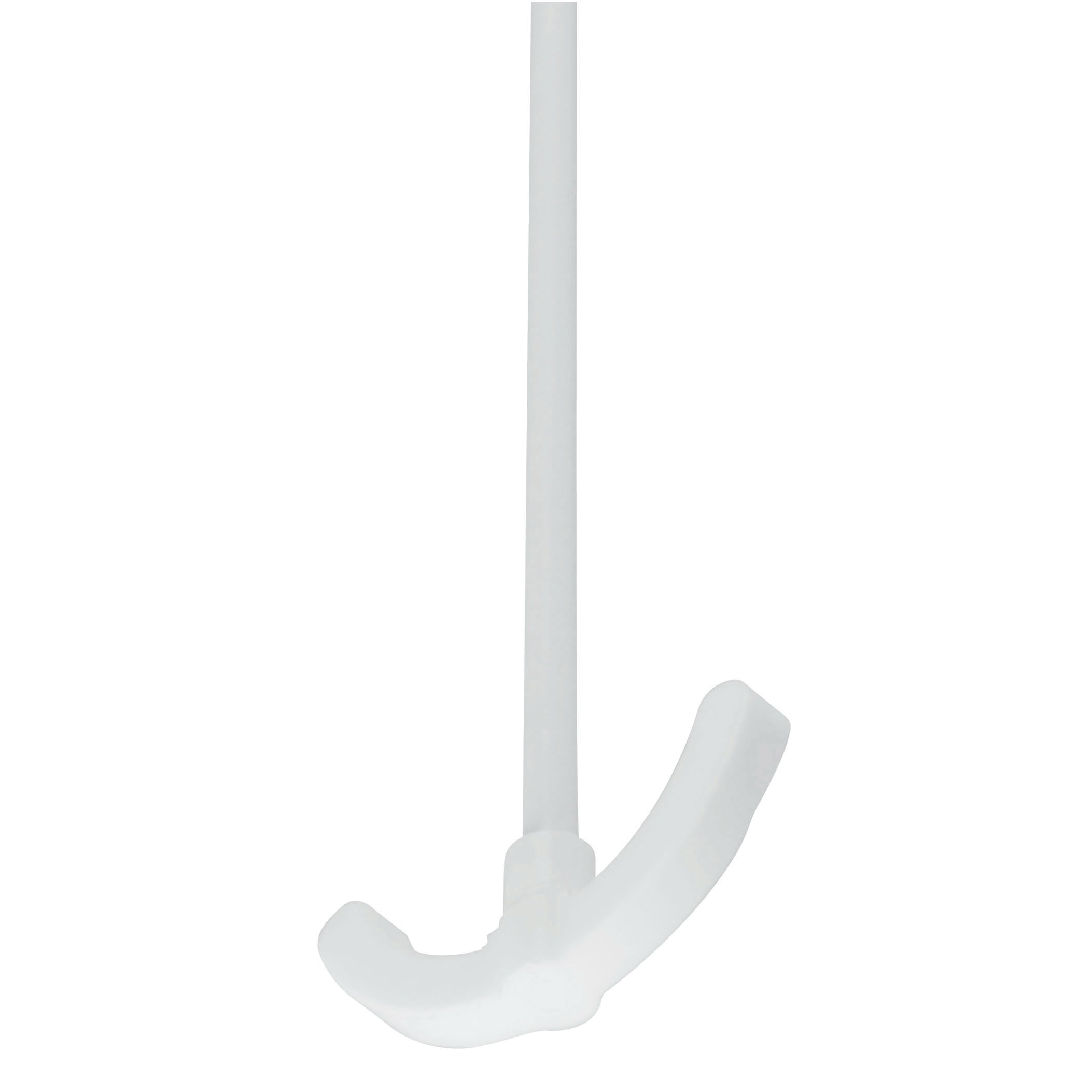

A tangential flow PTFE impeller for low speed, higher viscosity mixing. The 80 mm (3.125") blade is attached to an 8 mm (0.3125") dia PTFE-coated shaft, designed for use in round bottom vessels and reaction flasks. The stainless steel core of the shaft provides stability. PTFE (polytetrafluoroethylene) can be used under the most adverse conditions. This high performance coating is insoluble, non-contaminating and has exceptional thermal resistance. It is easy to clean, does not scratch other surfaces and is unbreakable.
| Material | : | PTFE Blade, Stainless Steel Shaft Core |
| For Use With | : | For BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers |
| Shaft Diameter | : | 8 mm |
| Shaft Length | : | 400 mm |
| Weight | : | 113 g |
| Type | : | Anchor Paddle |
| Blade Dimension | : | 80 mm dia |
| Finish | : | PTFE-coated Shaft |
| Flow Pattern | : | Tangential |
- High heat resistance
- Autoclavable
- Scratch- and chip-resistant
- Poor adhesion - materials release easily from impeller
- One piece
- Excellent chemical (including acidic and caustic) resistance
- Effective for low speed medium to high viscosity mixing
- Provides stability to impeller
- Suitable for heated processes
- Good for biotechnology processes
- Low risk of particles introduced to batch
- Easy-to clean
- Quick to insert and begin mixing
