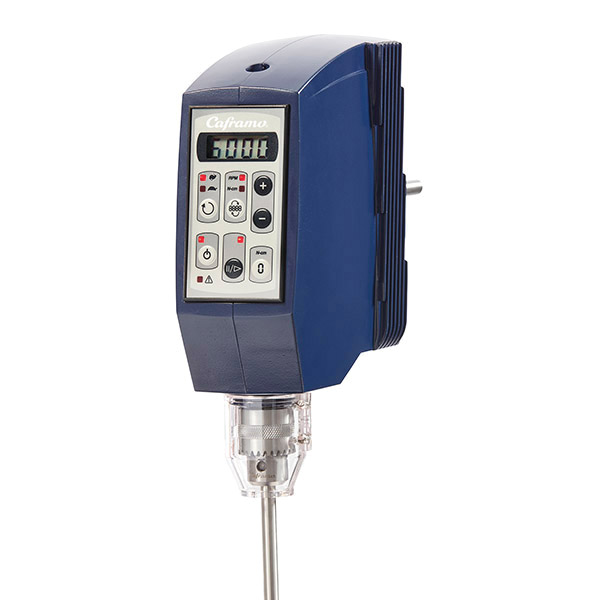

Caframo BDC6015 Model Cast Aluminum Housing Ultra Speed Overhead Stirrer, 25 L, 40 to 6000 rpm

Ultra Speed Overhead Stirrer, 25 L, Cast Aluminum Housing, 40 to 6000 rpm, BDC6015 Model, 170 Ncm Torque, 20,000 mPas Viscosity, 220 to 240 V, 50/60 Hz, 150 W, Torque Display, 5 to 40°C Ambient Temperature, 80% Relative Humidity, Clockwise Only Rotation

  • Manufacturer Part No: BDC6015220AU
  • SECO Part No: CAF-BDC6015220AU
  • Sold As:
  • Availability: loading

Caframo's Ultra Speed 6015 produces results in high speed applications, including emulsions, micro encapsulations, low viscosity slurries and high shear dispersions of powders. Digital display and precision control of speed settings make repeatability of process easy. Safety features shut down the stirrer if there is overheating or torque overload, ensuring a long stirrer life. Operate with speeds up to 6000 rpm with peace of mind. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty.

Torque : 170 Ncm
Speed : 40 to 6000 rpm
Speed Display : Yes
Speed Accuracy : ±1 rpm or ±1% of Reading
Torque Display : Yes
Zero Torque : Yes
Timer : No
Through Shaft : Yes
Rotation Direction : Clockwise Only
Ambient Temperature : 5 to 40°C
Relative Humidity : 0.8
Electrical Requirement : 120 V, 50/60 Hz, 150 w
Material : Cast Aluminum Housing
Shaft Diameter : 10 mm Maximum Chuck
Viscosity : 20000 mPas
Volume : 25 L
Includes : Support Rod, Chuck, Chuck Key, Chuck Guard, Australia Cord Set and Printed Manual
Speed Range : 40 to 1200 to 1200 to 6000 rpm
Chuck and Shaft Guard : Yes
  • Brushless DC motor
  • Totally enclosed metal housing
  • High efficiency (less heat)
  • Protection from dust and product splashing
  • Precise speed adjustment and speed maintenance as viscosity changes
  • Transmission selects high-torque or high-speed range
  • Easy impeller adjustment saves time
  • Safely encloses spinning chuck to protect user
  • Protects chuck from splashes
  • CSA Listed to Canada and US Standards
