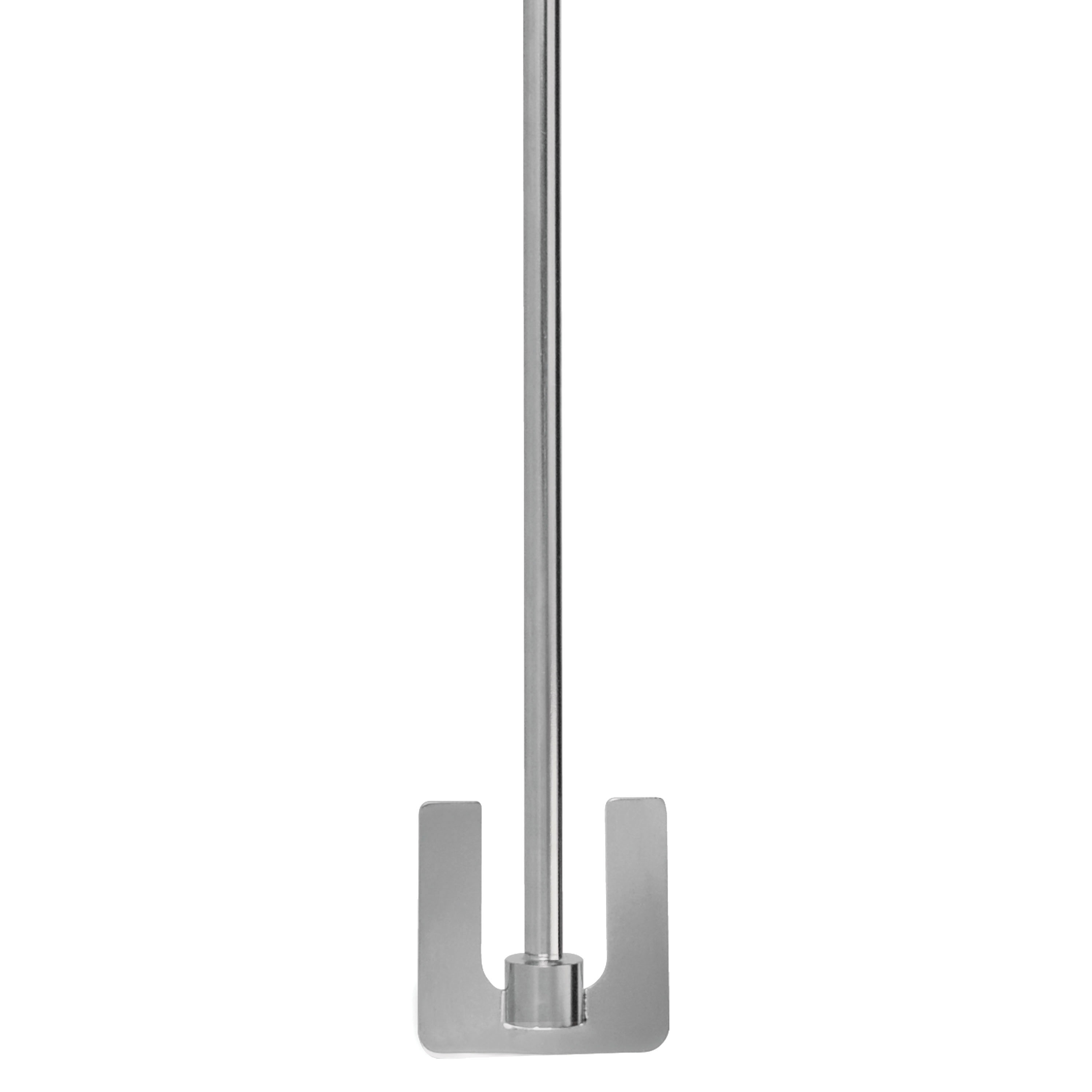

Caframo Anchor Paddle Impeller, 50 x 50 mm Blade
Impeller, 50 x 50 mm Blade, 400 L x 8 mm dia, Electropolished 316L Stainless Steel, Tangential Flow Pattern, Anchor Paddle Type, For BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers
- Manufacturer Part No: U022
- SECO Part No: U022
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
This tangential flow impeller is effective for low speed, high viscosity mixing. The 50 x 50 mm (2 x 2") anchor blade is welded to an 8 mm (0.3125") dia shaft, all electropolished 316L stainless steel. Sometimes referred to as a "sweep", the high shear at the edges makes it a good choice to use close to the vessel wall.
| Material | : | 316L Stainless Steel |
| For Use With | : | For BDC1850, BDC3030, BDC6015, BDC2002, BDC2010 Overhead Stirrers |
| Shaft Diameter | : | 8 mm |
| Shaft Length | : | 400 mm |
| Weight | : | 180 g |
| Type | : | Anchor Paddle |
| Blade Dimension | : | 50 x 50 mm |
| Finish | : | Electropolished |
| Flow Pattern | : | Tangential |
- Welded to shaft
- Effective for low speed high viscosity mixing
- Chemically inert and corrosion resistant
- One piece - quick to insert and begin mixing
