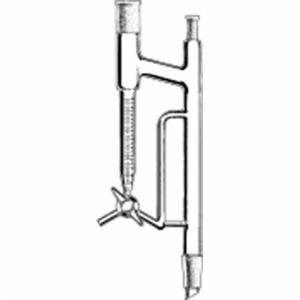

DWK Life Sciences (Kimble) Dean Stark Distillation Receiver, 355 H x 130 mm W
Dean Stark Distillation Receiver, 20 ml, 355 H x 130 mm W, Borosilicate Glass, 0 to 3 in 0.2 ml, 3 to 20 in 0.5 ml Graduations, 24/40 Standard Taper Joints, For Determination of Water Content in Organic Solvents
- Manufacturer Part No: 535801-0000
- SECO Part No: 535801-0000
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Ideally suited for the determination of water content in organic solvents.
| Capacity | : | 20 ml |
| Height | : | 355 mm |
| Material | : | Borosilicate Glass |
| Graduation Intervals | : | 0 to 3 in 0.2 ml, 3 to 20 in 0.5 ml |
| Width | : | 130 mm |
| Standard Taper Joint | : | 24/40 |
| Type | : | Dean Stark |
- Dean Stark design for solvents that are classified as either heavier than water or lighter than water
- Unit is compact in both the standard taper 24/40 and standard taper 14/20 sizes
- Lower three-way stopcock provides a sample port, and the apparatus can be drained without disassembly
- Trap area is positioned well above the boiling flask
- Thermometer joint is Standard Taper 10/30
- Stopcock plug is 822501-0002
- Ref: Design suggested by Dr. A. J. East, Celanese Corp
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP type I and ASTM E438, type I, class A requirements
