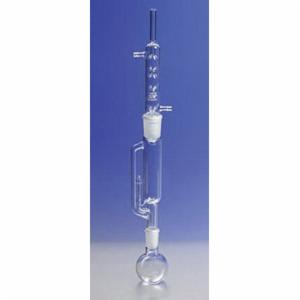

DWK Life Sciences (Kimble) Soxhlet Extraction Apparatus with Enlarged Vapor Tube, 680 mm H
Soxhlet Extraction Apparatus, 500 ml, 680 mm H, 157 L x 41 mm ID Body, Borosilicate Glass, 24/40 Standard Taper Joint, 0.37" Fits Tubing ID, 45/50 Standard Taper Joint to Condenser, 0022/0222 Thimble Size, With Enlarged Vapor Tube
- Manufacturer Part No: 585050-0022
- SECO Part No: 585050-0022
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Soxhlet-type extraction apparatus with a bulb-type Allihn condenser, used for the continuous extraction of solids with a suitable solvent.
| Capacity | : | 500 ml |
| Height | : | 680 mm |
| Diameter | : | 41 mm ID Body |
| Material | : | Borosilicate Glass |
| Hose Connection | : | Number 2 |
| Thimble Size | : | 0022/0222 |
| Condenser Type | : | Allihn, Bulb-type |
| Standard Taper Joint | : | 24/40 |
| Standard Taper Joint to Condenser | : | 45/50 |
| Body Length | : | 157 mm |
| Fits | : | 0.37" ID Tubing |
- Improved design with a protected siphon tube, an enlarged vapor tube and sloping seals to prevent the trapping of liquid
- Standard taper joints connect the condenser to the extractor and the extractor to the flask
- Uses paper, alundum or 586500 fritted glass extraction thimbles, not supplied
- Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP type I and ASTM E438, type I, class A requirements
