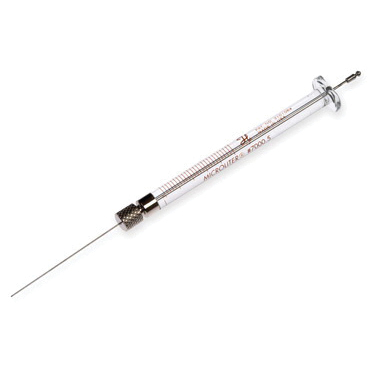

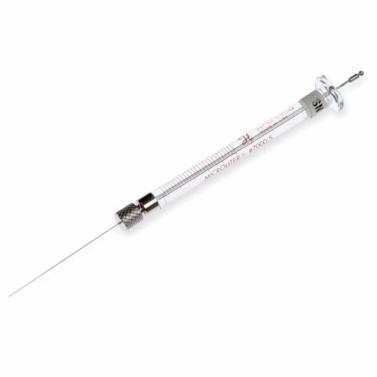

Hamilton® 7000.5 Model AS Point Style Modified Microliter Syringe with Knurled Hub, 43.4 mm L, 0.13 ID x 0.483 mm OD
Modified Microliter Syringe, 0.5 µl, 43.4 mm L, 0.13 ID x 0.483 mm OD, 1.24 ID x 6.6 mm OD Barrel, 26s ga Gauge, 7000 Series, 7000.5 Model, AS Point Style, Knurled Hub Termination, SST, Borosilicate Glass Fluid Path, Tungsten Plunger
- Manufacturer Part No: 86274
- SECO Part No: 17-1412-03
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
These syringes are designed to dispense volumes below 5 µl. This requires an extremely small tungsten plunger wire that travels to the tip of the needle. The resulting design has zero dead volume and is accurate below 50 nl. The 7000 series syringes are modified microliter syringes with a plunger-in-needle design. The 7000 series is the only zero dead volume syringe available. The fine gauge tungsten plunger wire extends to the tip of the needle, ensuring that all solvent is expelled dispensing volumes from 0.05 µl up to 5 µl.
| For Use With Equipment | : | Agilent GC 7693A, 7673, 7683, 6850 |
| Volume | : | 0.5 µl |
| Accuracy | : | ±1% |
| Barrel Diameter | : | 1.24 ID x 6.6 mm OD |
| Gauge | : | 26s ga |
| Needle Diameter | : | 0.13 ID x 0.483 mm OD |
| Point Style | : | AS |
| Syringe Type | : | Modified Microliter |
| Termination | : | Knurled Hub |
| Autoclavable | : | Yes |
| Fluid Path | : | Stainless Steel, Borosilicate Glass |
| Gas Sterilizable | : | Yes |
| Material | : | Tungsten Plunger |
| Model | : | 7000.5 |
| Needle Length | : | 43.4 mm |
| Needle Type | : | Knurled Hub |
| Pressure | : | 6000 psig |
| Standard Needle Dead Volume | : | 0 µl |
| Syringe Series | : | 7000 |
| Temperature Range | : | 10 to 115°C |
- Conical, non-coring designed to withstand multiple injections
