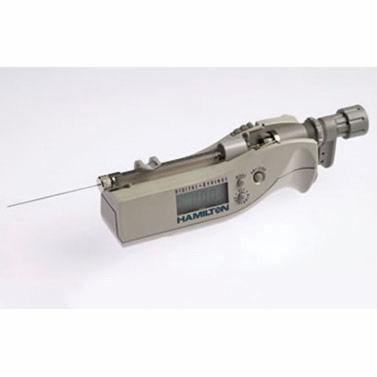

Hamilton® 705 Model 3 Point Style Digital Microliter Syringe with Cemented Needle, 51 mm L, 0.15 ID x 0.72 mm OD
Microliter Syringe, 50 µl, 51 mm L, 0.15 ID x 0.72 mm OD, 1.03 ID x 7.75 mm OD Barrel, 22s ga Gauge, 700 Series, 705 Model, 3 Point Style, Cemented Needle Termination, Digital Type, Stainless Steel Plunger
- Manufacturer Part No: DS80565
- SECO Part No: 17-1417-31
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Microliter syringes are used with liquid only. They feature a stainless steel plunger which is individually fitted to the glass barrel. The result is a liquid tight seal with nearly frictionless movement. These syringes are ideal for organic samples that are not prone to precipitation, crystallization, or bonding with glass. Plungers and barrels are not interchangeable or replaceable. The 700 series syringe is the original hand-fitted Hamilton® syringe. The stainless steel plunger is manufactured to fit the glass barrel with a tolerance less than three thousandths of a millimeter, resulting in unsurpassed syringe life. This series of syringes is ideal for dispensing volumes from 0.5 µl up to 500 µl. A variety of different terminations and needle options are available.
| Model | : | 705 |
| Syringe Series | : | 700 |
| Volume | : | 50 µl |
| Gauge | : | 22s ga |
| Needle Length | : | 51 mm |
| Needle Diameter | : | 0.15 ID x 0.72 mm OD |
| Needle Type | : | Cemented |
| Point Style | : | 3 |
| Syringe Type | : | Microliter |
| Accuracy | : | ±1% |
| Autoclavable | : | No |
| Barrel Diameter | : | 1.03 ID x 7.75 mm OD |
| Fluid Path | : | Stainless Steel, Borosilicate Glass |
| Gas Sterilizable | : | No |
| Material | : | Stainless Steel Plunger |
| Pressure | : | 2000 psig |
| Standard Needle Dead Volume | : | 1.13 µl |
| Temperature Range | : | 10 to 50°C |
| Termination | : | Cemented Needle |
| Type | : | Digital |
- For low-volume syringes
- Blunt, electro-polished
