Hamilton® 80091
Share
  1. pin-int
Email Print

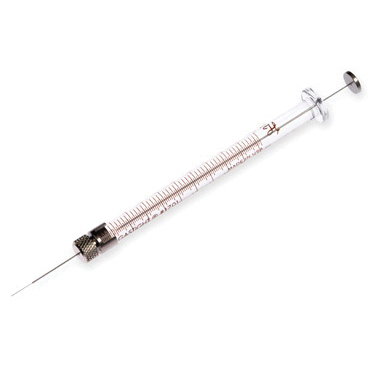

Hamilton® 1700 Series 1701 Model Removable Needle Gel Loading Syringe, 10 µl, 0.2 mm ga

Gel Loading Syringe, 10 µl, 0.007 ID x 0.008" OD Needle, 0.018 ID x 0.26" OD Barrel, Stainless Steel, Borosilicate Glass, PTFE, 1700 Series, 1701 Model, Gastight Type, Removable Needle Termination, 0.2 mm ga, 25.4 mm L Needle, 3 Point Style, Gas Sterilizable

  • Manufacturer Part No: 80091
  • SECO Part No: HC-80091
  • Sold As:
  • Availability: loading

The 1700 series syringes are the gastight version of the original 700 series syringes. This series of syringes is ideal for dispensing volumes from 1 µl up to 500 µl. A variety of different terminations and needle options are available in this series. multi-channel gel-loading syringes (GLS) are designed for multiplex DNA sequencing methodologies. Rapidly transfer 1, 8, or 12 samples to sequencing gels, 96-well plates, or nylon membranes. The fixed, 25 mm long, blunt needles are spaced 9 mm apart and are available with three needle outer diameters for optimized sample transfers. The adjustable volume stop allows faster, more accurate reloading and excellent reproducibility.

Volume : 10 µl
Syringe Type : Gastight
Syringe Series : 1700
Termination : Removable Needle
Fluid Path : Stainless Steel, Borosilicate Glass, PTFE
Autoclavable : Yes
Model : 1701
Gas Sterilizable : Yes
Gauge : 0.2 mm ga
Length : 25.4 mm Needle
Diameter : 0.007 ID x 0.008" OD Needle, 0.018 ID x 0.26" OD Barrel
Channel Type : Single Channel
For Use With : For Diluters/Dispensers, Autosamplers and Analyzers
Needle Type : Small RN
Point Style : 3
Pressure : 1000 psi
Standard Needle Dead Volume : 0.23 µl
Temperature Range : 10 to 115°C
  • Use in diluters/dispensers
  • Use in autosamplers and analyzers
  • Pipetting of gases
  • Sample injection in GC, LC and TLC
  • Plungers for GASTIGHT® syringes are easily replaceable when your glass barrel is not broken
