Lindberg/Blue M™ STF55666C-1
Share
  1. pin-int
Email Print

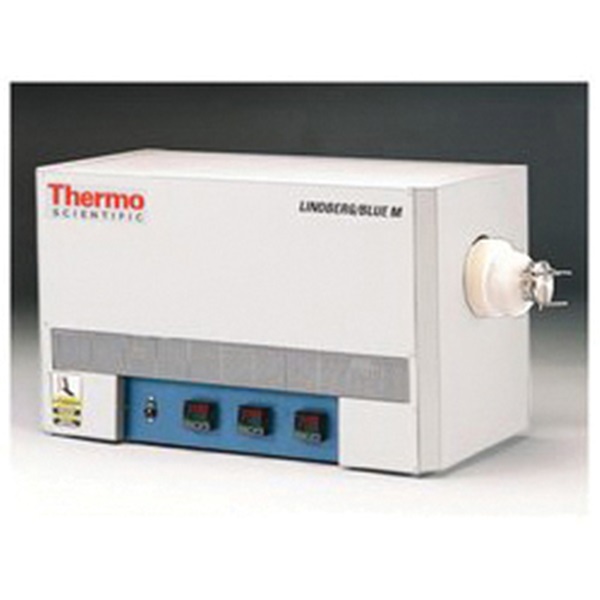

Lindberg/Blue M™ Multisegment Tube Furnace, 22 L x 54 W x 16" H

Tube Furnace, 22 L x 54 W x 16" H Exterior, 3 to 6" dia Process Tube, 9/18/9" Heated Zone, 50/60 Hz, Three-zone Programmable Controller, 100 to 1100°C Temperature Range, 208/240 V, Multisegment, Adjustable High-limit Overtemperature Protection

  • Manufacturer Part No: STF55666C-1
  • SECO Part No: STF55666C-1
  • Sold As:
  • Availability: loading

Conduct heating applications faster than conventional furnaces with Thermo Scientific™ Lindberg/Blue M™ 1100°C tube furnaces, which benefits from design elements such as double-shell construction and variable density insulation to enhance performance.

Exterior Length : 22"
Exterior Width : 54"
Exterior Height : 16"
Diameter Process Tube : 3 to 6"
Display : LED
Heated Zone : 9/18/9"
Type : Multisegment
Temperature Control : Three-zone Programmable Controllers - Single Program with 16 Segments
Temperature Range : 100 to 1100°C
Hertz : 50/60 Hz
Voltage : 208/240 V
  • Three zones, three programmable controllers
  • Microprocessor-based self-tuning PID control (proportional, integral, derivative) provides optimum thermal process without overshoot
  • Single program with multiple segments for ramp (up/down) and dwell (timed hold) temperature control
  • Adjustable high-limit overtemperature protection
  • Simultaneous LED display of temperature and setpoint in °C or °F
  • Flexible design-can be used for a variety of applications
  • Innovative use of venting and insulating air spaces create lower exterior surface temperatures
  • Moldatherm™ insulation for quick heatup and cooldown
  • Long-life type K thermocouple
  • Accepts an array of tube adapters; one set of (2) tube adapters included
  • RS485 digital communications port available as an option; allows controller to be connected to a PC for remote monitoring and control
  • Two tube adapters included
