Opus® 9581050
Share
  1. pin-int
Email Print

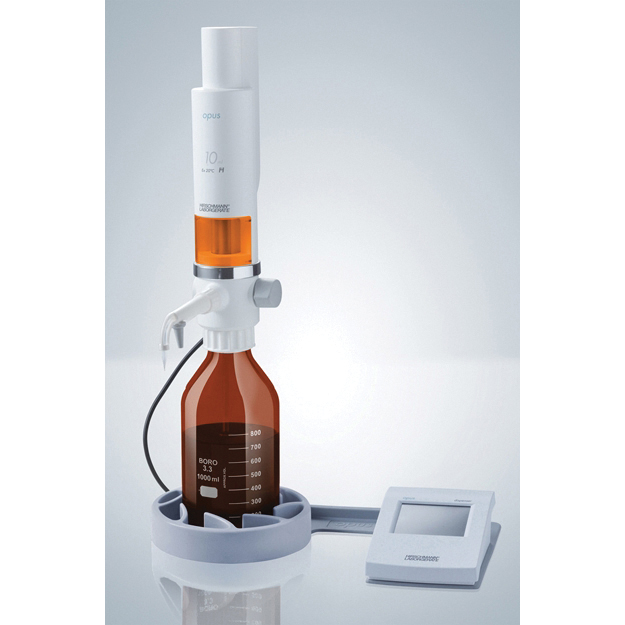

Opus® Dispenser, 50 ml, 100 to 240 V, EU, US, UK plug

Dispenser, 50 ml, Power Supply Unit with 100 to 240 V, EU, US, UK Plug, Up to 50 ml Individual Dispensing, USB or RS232 PC Interface, Free Rotation, Electronic Control and Dispensing, Remotely Controlled Via An Additional Cable-Connected Device

  • Manufacturer Part No: 9581050
  • SECO Part No: 9581050
  • Sold As:
  • Availability: loading

A dispenser with a reagent recirculation system for motor-powered dispensing directly from the reagent bottle. Available in three volumes (10 ml, 20 ml and 50 ml). Simplify the laboratory routine while still working with high precision - combining functionality and user-friendliness with functional reliability and efficiency. Serial dispensing procedures with consistent reliability of results can also be realized through electronic control - up to 9999 times if required. A standard stepper function enables the dispensing of several partial volumes (which may vary) from a single cylinder charge. Sophisticated details facilitate control. The dispensing procedure is configured on the intuitive TFT touchscreen. The user is guided through menu functions which are easily legible and comprehensible. Nine different dispensing procedures with their complete settings can be saved in the method memory and reactivated at any time if required. Award-winning design and handling excellence: if design award 2008 and 2009, reddot design award 2009, good design 2010, nominated for the German design award (designpreis Deutschland) 2010.

Material : Housing Made of PA6 Reinforced Glass Fibre, All Parts in Contact with Liquid are Made of Chemically Inert Material
Includes : Suction Hose with Union Nut, Recirculation Hose, Dispenser Ejection Unit, Valve Fitting Wrench, Touchscreen Control Unit "Dispenser", Brown Light Protection Window, Power Supply Unit, Data Power Cable, Operating Manual and Individual Quality Certificate
Dimension : 55 H x 130 D x 110 mm W
Net Weight : 230 g (without Battery)
Volume Capacity : 1 to 500 ml Maximum Piston Lift 50 ml Range, Automatic Addition, 10 µl Resolution
  • Electronic control and dispensing of volume
  • A light protection window for the valve block is also included in the scope of delivery
  • TFT touchscreen with user-friendly menu
  • Method memory for nine different dispensing procedures with storage of all settings
  • Serial dispensing up to 9999 times
  • Standard stepper function
  • Media recirculating system for simple and rapid venting without reagent loss
  • Free rotation
  • Superior materials and reliable piston sealing, even in the case of problematic media
  • Brown glass cylinder available for light-sensitive media
  • USB and RS232 interface for PC connection
  • Integration in automated procedures possible
  • Opus® with A 45 internal thread and additional A 32, A 38 and S 40 threaded adapters
  • Module type- external control module includes touch screen control
  • Touchscreen - 3.5" with 320 x 240 pixel, most important functions directly accessible from main screen
  • Quick-Cal calibration of other temperature or medium possible
  • Method memory of up to 9 different unit configurations can be saved and 4 languages (D, GB, F, S) integrated as standard option
