Orion™ Versa Star™ VSTAR-ISE
Share
  1. pin-int
Email Print

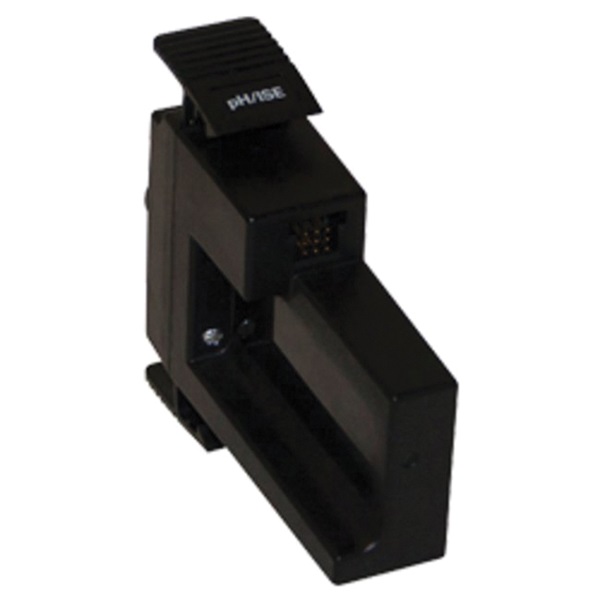

Orion™ Versa Star™ 4 Channels pH/mV/ISE/Temperature Measurement Module, 12 L x 3 W x 9.5 cm H

Measurement Module, 12 L x 3 W x 9.5 cm H, 4 Channels, -2 to 20 pH Range, ±0.002 pH Accuracy, 1 Point (mV Mode) Calibration, Manual or Automatic With ATC Temperature Probe, Up to 4 Significant Digits, Set Point Alarm, High/Low Limit Alarm

  • Manufacturer Part No: VSTAR-ISE
  • SECO Part No: 21-0730-03
  • Sold As:
  • Availability: loading

Add pH, ion concentration, mV, ORP and temperature measurement capabilities to your Thermo Scientific™ Orion™ Versa Star meter using the Thermo Scientific™ Orion™ Versa Star pH / ISE Measurement Module. Each Orion™ Versa Star meter has four channels that can be customized with interchangeable measurement modules. The Versa Star pH/ISE module offers up to six point pH and ISE calibrations and advanced ISE features including incremental techniques (single and double known addition and subtraction, analate addition and subtraction), low range stability and electrode ID with calibration verification. Select from five Thermo Scientific Orion Versa Star measurement modules to customize the measurement capabilities of your Orion Versa Star meter. Measurement modules are interchangeable and can be added or removed from each Versa Star meter's four channels at any time.

Length : 28 cm
Width : 24 cm
Height : 10 cm
Accuracy (mV)/Accuracy (ISE) : ±0.2 mV or ±0.05% of Reading Whichever is Greater
Accuracy (pH) : ±0.002 pH
Accuracy (Temperature) : ±0.1°C
Calibration Point : 1 Point Relative mV (RmV) Mode, 1 Point ORP Mode
Includes : Versa Star pH/mV/ISE/Temperature Module
Input : BNC (pH or ISE), 8-pin Mini-DIN (Temperature), Reference Pin-tip
ISE Calibration Point : 1 to 6
Isopotential Point : 7 pH (Adjustable), 1 ISE (Adjustable)
Measurement Mode : pH, mV, Relative mV (RmV), ORP or Ion Concentration (ISE) With Temperature
Method : 10 per Channel with Password Protection
Number of Channel : 4
Operating Temperature : 41 to 113°F
pH Calibration Point : 1 to 6
Probe Type : pH Electrode, ORP Electrode, Ion Selective Electrode (ISE), Reference Half-cell Electrode, ATC Temperature Probe (Purchase Separately)
Range (ISE) : 0 to 19999 in ppm, M, mg/L, %, ppb or Unitless
Range (mV)/Range (Relative mV)/Range (ORP) : ±2000 mV
Range (pH) : -2 to 20 pH
Range (Temperature) : -5° to 105°C
Relative Humidity Range : 5 to 85%, Non-condensing
Resolution (ISE) : Up to 4 Significant Digits
Resolution (mV) : 0.1 mV
Resolution (pH) : 0.1, 0.01, 0.001 pH
Resolution (Temperature) : 0.1°C
Stability : Selectable Fast, Medium, Slow or Smart Stability Setting; Selectable off or Automatic Smart Averaging Setting
Temperature Probe Calibration : 1 Point Temperature Offset Calibration
Temperature Selection : Manual or Automatic with ATC Temperature Probe
Weight : 0.2 kg
  • Measure pH, ion concentration, mV, relative mV or ORP with temperature
  • Perform up to a six point pH calibration using automatic buffer recognition of NIST, DIN or user-defined buffer groups with choice to manually enter custom buffer values
  • Perform up to a six point ISE (Ion Selective Electrode) calibration with selectable units of ppm, M, mg/L, %, ppb or none
  • Incremental techniques include single known addition, double known addition, single known subtraction, double known subtraction, analate addition and analate subtraction
  • Advanced ISE features include non-linear selectable auto-blank, low range stability and electrode ID with calibration verification
  • Customize measurements to show calibration history and pH electrode condition or simplify to show an extra large pH or ion concentration reading
  • Module offers a 3-year replacement warranty
  • Advanced ISE functions- timed endpoint, linear point to point, non-linear selectable auto-blank, low concentration range stability, incremental techniques including single known addition and subtraction, double known addition and subtraction, single analyte addition and subtraction
  • Stability- selectable fast, medium, slow or smart stability setting; selectable off or automatic smart averaging setting
  • IP rating- IP-54
  • Alarm output- set point alarm, high/low limit alarm, calibration due alarm
