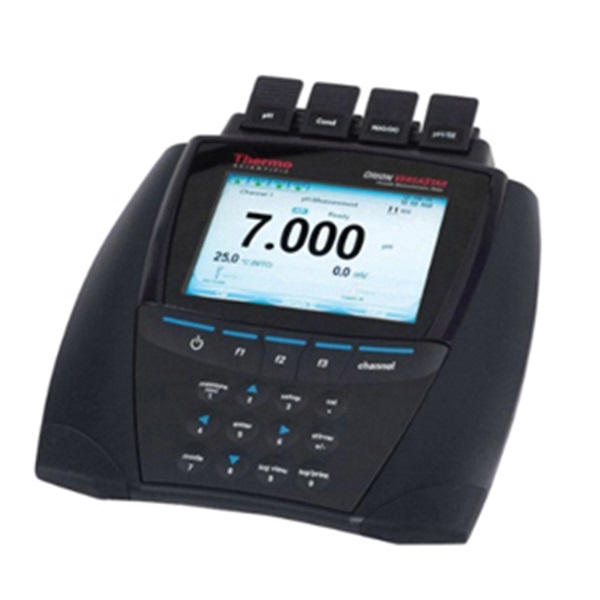

Orion™ Versa Star Pro™ Conductivity Benchtop Meter Standard Sample Kit
Conductivity Benchtop Meter Standard Sample Kit, 28 L x 24 W x 10 cm H, 22 to 221°F Temperature Range, Color Graphic LCD with User-customizable Options Display Type, 2000 with Date and Time Stamp Data Points
- Manufacturer Part No: VSTAR22
- SECO Part No: 21-0230-10
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
Get high accuracy, premium performance and ultimate flexibility with the Thermo Scientific™ Orion™ Versa Star Pro™ Benchtop Meter with Conductivity Module. Meet your most challenging applications for conductivity, total dissolved solids (TDS), salinity, resistivity and temperature. Easily view measurements on the stunning color display and customize the four meter channels with interchangeable modules. Obtain reliable, fast results with auto-ranging conductivity values and extensive temperature compensation options. Log up to 2000 data point sets with time / date and transfer to printer or computer. Thermo Scientific Orion Versa Star Pro benchtop meters are designed to meet your most challenging application with ease. Delivering rich functionality and features, you can optimally configure your meter system to meet changing requirements. The Orion Versa Star Pro benchtop meters offer interchangeable measurement modules that allow multiple users to customize four separate channels to meet their specific requirements. Easily view your measurements on a stunning color display with adjustable text sizes. Take the guesswork out of meter calibration and setup with onscreen instructions available in a variety of local languages. Enjoy quick and simple data entry using the numeric keypad.
| Length | : | 28 cm |
| Width | : | 24 cm |
| Height | : | 10 cm |
| AC Adapter | : | Universal 50 to 60 Hz, 100 to 240 VAC Power Adapter (Catalog Number STARA-PWR) |
| Accuracy (Conductivity) | : | 0.5% of Reading ±1 Digit >3 ¿s, 0.5% of Reading ±0.01 µS =3 µS |
| Accuracy (Resistivity) | : | 0.5% of Reading ±1 Digit |
| Accuracy (Salinity) | : | 0.5% of Reading ±1 Digit |
| Accuracy (TDS) | : | 0.5% of Reading ±1 Digit |
| Alarm Output | : | Set Point Alarm, High/Low Limit Alarm, Calibration Due Alarm |
| Cell Constant | : | 0.001 to 199.9 cm-1 |
| Compatible Probes | : | 2-cell or 4-cell Conductivity Sensors with Built-in Temperature |
| Data Management Details | : | Transfer Single, Range or All Data Points to Printer or Computer |
| Data Point | : | 2000 with Date and Time Stamp |
| Display Type | : | Color Graphic LCD with User Customizable Options |
| Includes | : | Orion Versa Star Pro Meter, VSTAR-CND Conductivity Module, 013005MD Orion DuraProbe 4-cell (K=0.475) Conductivity Sensor, 011007 Orion 1413 µS Conductivity Standard, Electrode Stand, Universal Power Adapter, Literature CD, Printed Quick Start Guide, Computer Interface Cable and Meter Test Certificate |
| Input | : | 8 pin MiniDIN (Conductivity Sensor with Built-in Temperature), Two Stirrer Inputs (Stirrer Probe) |
| IP Rating | : | IP54 |
| Keypad | : | Numeric with Menu-specific Function Keys and Dual Purpose Scroll/Shortcut Keys |
| Languages | : | English, Spanish, French, Italian, German, Chinese, Portuguese and Korean |
| Measurement Mode | : | Conductivity, TDS, Salinity or Resistivity with Temperature |
| Memory | : | Non-volatile Memory Preserves Data log, Calibration Log and Meter Settings |
| Method | : | 10 per Channel |
| Number of Channel | : | 4 (Customizable with Modules) |
| Operating Temperature | : | 41 to 113°F |
| Output | : | USB (2), RS232 |
| Power Supply | : | Universal AC Adapter (Included) |
| Probe Type | : | Conductivity Sensor, Stirrer Probe (Includes 013005MD Orion DuraProbe 4-cell Conductivity Sensor) |
| Range (Conductivity) | : | 0.001 µS/cm to 3000 mS/cm |
| Range (Resistivity) | : | 2 ohm to 100 meg-ohm |
| Range (Salinity) | : | 0.06 to 80 psu, 0.05 to 42 ppt |
| Range (TDS) | : | 0.001 to 200 ppm |
| Relative Humidity Range | : | 5 to 85%, Non-condensing |
| Resolution (Conductivity) | : | 0.001 µS Minimum, Auto Ranging up to 4 Significant Digits |
| Resolution (Resistivity) | : | 1 ohm or 0.1 meg-ohm, Auto Ranging |
| Resolution (Salinity) | : | 0.01 psu or 0.01 ppt Minimum, Auto Ranging |
| Resolution (TDS) | : | 0.001 ppm Minimum, Auto Ranging up to 4 Significant Digits |
| Stability | : | Selectable Fast, Medium, Slow or Smart Stability Setting, Selectable off or Automatic Smart Averaging Setting |
| TDS Factor Range | : | Linear (0.02 to 9.99) |
| Temperature Accuracy | : | ±0.1°C |
| Temperature Probe Calibration | : | 1 Point Temperature Offset Calibration |
| Temperature Range | : | 22 to 221°F |
| Temperature Resolution | : | 0.1°C |
| Temperature Selection | : | Manual or Automatic with ATC Temperature Probe |
| Weight | : | 1.2 kg, Modules Add 0.2 kg Each |
- Onscreen measurement stability indicator lets you know exactly when your measurements are ready
- Selectable read modes include auto-read to hold a stable reading, continuous to show changing readings, timed to log data at specific intervals and single-shot to hold a reading after a specific wait time is reached
- Audible alarms automatically notify you when a set offset value, high/low limit value, and calibration time interval are reached
- Easily access, update and switch your preferred measurement settings, using ten password-protected methods per channel
- Uniformly mix solutions using up to two meter-controlled stirrer probes that are easy to position and can be quickly rinsed between samples
- Data log collects and date/time stamps up to 2000 measurement sets with optional electrode ID, sample ID and account ID
- Calibration log stores 30 most recent calibrations per parameter
- Ensure measurement integrity by viewing the active calibration log while taking readings
- Non-volatile meter memory preserves data and settings, even in the event of power loss
- Meter facilitates data transfers to a computer via USB or RS232 connections
- IP54-rated housing resists dust and splashes and can be wall-mounted if table space is limited
- Meters include CE, TUV 3-in-1 and FCC class A certifications and 3-year replacement warranty
- Includes Orion versa star conductivity measurement module: Measure conductivity, TDS, salinity or resistivity with temperature
- Perform up to a six point conductivity calibration with calibration editing option that allows individual points to be fixed without a full recalibration
- Auto-ranging conductivity values offer consistent readings across entire measurement range without need to recalibrate
- Use linear, non-linear, EP (USP) or off conductivity temperature compensation with 5, 10, 15, 20 or 25°C reference temperatures
- Customize measurements to show calibration history or simplify to show an extra large conductivity reading
- Linear, nLFn (non-linear ultra pure water), nLFu (non-linear ultra pure degassed water), EP (off with warning) or off temperature compensation, Conductivity with calibration editing option and temperature Calibration
- Automatic data logging with auto-read, timed and single shot measure modes; manual data logging with continuous measure mode log function type
- Modules add = 2 cm (0.8") length and height
- Approved by CE, TUV 3-1, FCC Class A
