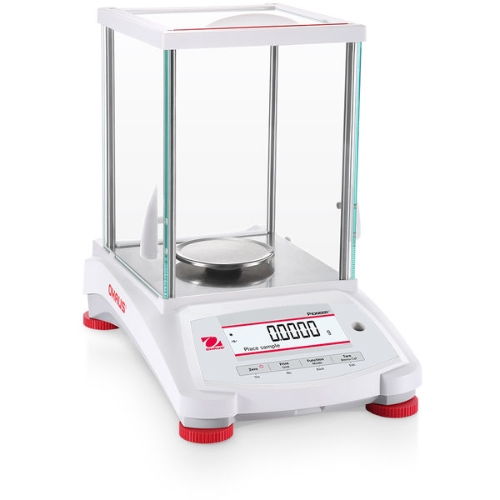

Pioneer® PX224/E Model Analytical Balance, 220 g, 0.1 mg Resolution
Analytical Balance, 220 g, 309 H x 209 W x 321 mm D, Metal Base, Plastic Top Housing, 90 mm dia Stainless Steel Pan, 0.1 mg Readability, 0.0001 g Repeatability, ±0.0002 g Linearity, 3 sec Stabilization Time, PX224/E Model, 2-Line LCD with Backlight
- Manufacturer Part No: 30429847
- SECO Part No: OHS-30429847
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.
| Capacity | : | 220 g |
| Dimension | : | 309 H x 209 W x 321 mm D |
| Pan Size | : | 90 mm dia |
| Material | : | Metal Base, Plastic Top Housing |
| Resolution | : | 0.1 mg |
| Repeatability | : | 0.0001 g |
| Pan Material | : | Stainless Steel |
| Linearity | : | ±0.0002 g |
| Stabilization Time | : | 3 sec |
| Weighing Unit | : | Singapore Tael; Pennyweight; Ounce Troy; Kilogram; Grain; Tical; Custom; Milligram; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Ounce; Carat |
| Display Type | : | 2-Line LCD with Backlight |
| Operating Condition | : | Operability guaranteed between 41°F and 104°F; 50°F – 86°F, 80%RH, non-condensing |
| Connectivity | : | RS232, USB (Included), GLP/GMP Data Output with Real-time Clock |
| Weight | : | 10 lb |
| Draftshield | : | Yes |
| Model | : | PX224/E |
| Power Source | : | AC Adapter |
| Tare Range | : | To Capacity by Subtraction |
| With | : | In-use Cover, Draftshield, RS232 and USB Included, Auxiliary Display Model as an Accessory |
Applications
Basic Weighing, Parts Counting, Percent Weighing, Animal Weighing, Density Determination
Display
Backlit Liquid Crystal Display (LCD); Second line display for additional information or guidance (dot matrix)
Operation
AC adapter (included)
Communication
RS232 and USB device (included); GLP/GMP data output with real-time clock
Construction
Metal base, plastic top housing, removable stainless steel pan, glass draftshield, integrated weigh-below-hook, security bracket, calibration lock and in-use cover
Design Features
User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator, four operating languages
Specification Sheeet
