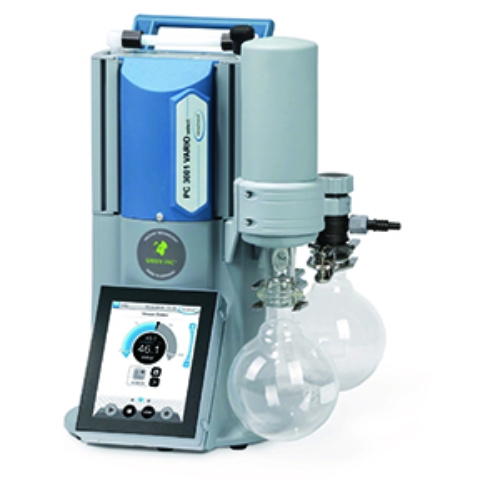

Vacuubrand® PC 3001 VARIO® Select Oil-Free VARIO® Vacuum Pump

Oil-Free Chemistry Single Application Vacuum System, PC 3001 VARIO® select, Adaptive Controller, Ultimate Vacuum 2 mbar/1.5 Torr, Free Air Capacity at 60 Hz 1.2 cfm/33 lpm, 120 V, 60 Hz, US Power Cord

  • Manufacturer Part No: 20700203
  • SECO Part No: 21-4461-00
  • Sold As:
  • Availability: loading

The VACUUBRAND PC 3001 VARIO® select is the best choice vacuum system for bench-top sized rotary evaporators and other evaporative applications. The integrated VACUU•SELECT® touch screen controller gives you fingertip control to select an automatic routine for your desired application.


For example, for a rotary evaporator, the PC3001 VARIO® select automatically controls the vacuum, with minimal supervision, continuously optimizing to changing vapor conditions without programming. Just press “start” and the PC 3001 VARIO® select provides faster evaporation and tighter control, while freeing you up to do more important work.


You can even set up your own custom routine by modifying existing routines, or assembling your own with drag-and-drop building blocks. It features a VARIO® version of our MD1C vacuum pump, with integrated solvent recovery in a compact, attractive package.

Ultimate Vacuum Range : Down to 1.5 mbar
Chemical Resistant : Yes
Ambient Temperature : 10 to 40°C
Controller : Adaptive
Free Air Capacity at 60Hz cfm : 1.2
Free Air Capacity at 60Hz lpm : 33
Height : 400 mm
Hertz : 50/60 Hz
Inlet Connector : Hose Nozzle DN 6 to 10 mm
Length : 300 mm
Model : PC 3001 VARIO® Select
Motor Power : 0.16 kW
Motor Speed : 200/3000 min-1
Noise Level at 50 Hz : 42 dBA
Number of Heads : 4/3
Outlet Connector : Hose nozzle DN 8 to 10 mm
Solvent Recovery : Yes
Ultimate Vacuum mbar : 2 mbar
Ultimate Vacuum Torr : 1.5 Torr
Width : 306 mm
Voltage : 100 to 120, 200 to 230 V
