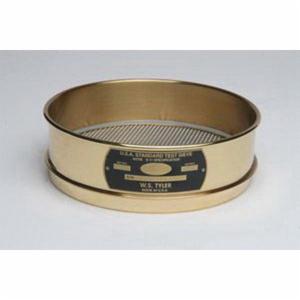

W.S. Tyler 8" dia Full Height Test Sieves, 2.62 H x 2" D, US Number 45
Test Sieves, 8" dia, 2.62 H x 2" D, Brass Frame, Brass Wire, Full Height, US Number 45, 355 µm Sieve Opening Size, 396 µm Opening Dimension, 0.22 mm Nominal Wire Diameter, 426 µm Max. Individual Opening, ±16 µm Permissible Variation in Openings
- Manufacturer Part No: 4540
- SECO Part No: 21-6225-17
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
| Height | : | 2.62" |
| Diameter | : | 8" |
| Nominal Wire Diameter | : | 0.22 mm |
| Frame Material | : | Brass |
| Wire Material | : | Brass |
| Permissible Variation in Openings | : | ±16 µm |
| Opening Dimension | : | 396 µm |
| Maximum Individual Opening | : | 426 µm |
| Depth | : | 2" |
| Height Type | : | Full Height |
| Sieve Opening Size | : | 355 µm |
| US Standard Number | : | 45 |
| Tyler Standard | : | 42 Mesh |
| For Use With Application | : | Particle Measurement in Agricultural, Bio Industry, Chemical, Cosmetics, General Industrial, Fertilizer, Foods, Minerals, Pharmaceuticals, Plastics and Metal Products Industries |
- ASTM E11-09 and ISO 565, 3310-1 Standards
Specification Sheet
