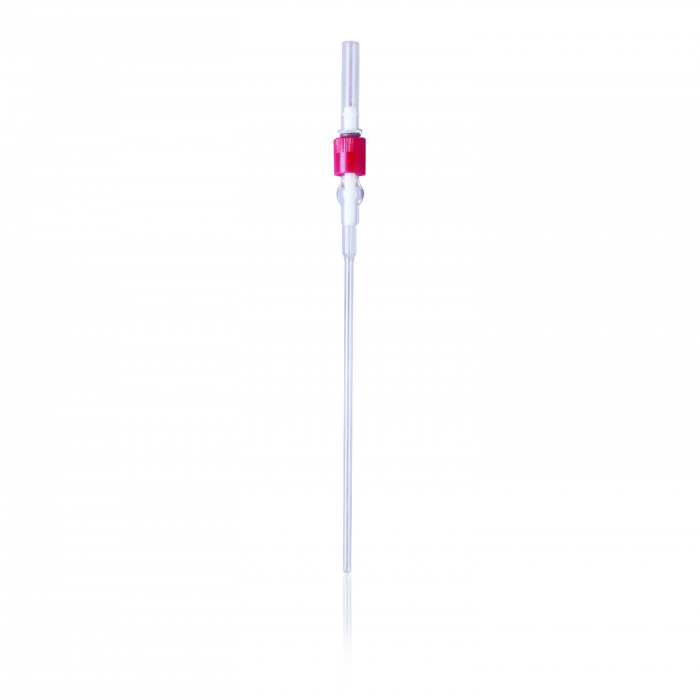

DWK KIMBLE® KONTES® Valved 5mm NMR Tube
Precision NMR tube with uniform wall thickness and consistent diameter for accurate spectroscopy.
- Manufacturer Part No: 897435-0008
- SECO Part No: DWK-897435-0008
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
KIMBLE® KONTES® Valved 5mm NMR Tube, 8 ", >360 MHz
| Diameter | : | 5 mm |
| Material | : | Borosilicate glass 3.3 |
| Length | : | 8 in |
| Wall Thickness | : | 0.375 mm |
| Camber (TIR) | : | 0.0006 in |
| Concentricity (TIR) | : | 0.001 in |
| Field Strength | : | >360 MHz |
| O-Ring | : | FKM |
Manufactured from borosilicate glass 3.3
KONTES HI-VAC valve maximizes sample recovery
Greaseless valve features a borosilicate glass body and PTFE plug so that the sample is always in contact with inert materials
Rotationally symmetrical design, with two lateral ports located near the valve seat, permits use at higher temperatures
FKM O-Ring seal is used to connect the valved NMR tube to a vacuum system
Suitable for use in instruments with field strengths greater than 360 MHz
KONTES HI-VAC valve maximizes sample recovery
Greaseless valve features a borosilicate glass body and PTFE plug so that the sample is always in contact with inert materials
Rotationally symmetrical design, with two lateral ports located near the valve seat, permits use at higher temperatures
FKM O-Ring seal is used to connect the valved NMR tube to a vacuum system
Suitable for use in instruments with field strengths greater than 360 MHz
