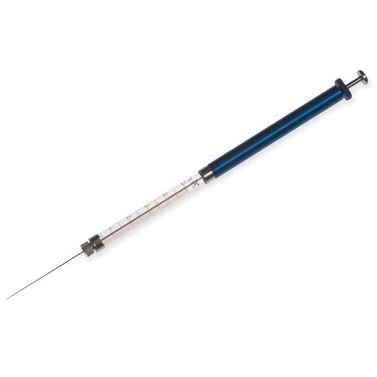

Hamilton® 802 Model 2 Point Style Microliter Syringe with Removable Needle, 51 mm L, 0.15 ID x 0.72 mm OD
Microliter Syringe, 25 µl, 51 mm L, 0.15 ID x 0.72 mm OD, 0.729 ID x 7.75 mm OD Barrel, 22s ga Gauge, 800 Series, 802 Model, 2 Point Style, Removable Needle Termination, SST, Borosilicate Glass Fluid Path
- Manufacturer Part No: 84855
- SECO Part No: 14-4225-09
- Sold As:
-
Availability:
Login to View Your Price
-
List Price :
The 800 series syringes are the reinforced plunger version of the 700 series syringes. Attached to the flange of the syringe is a blue syringe holder. The syringe holder provides an area to hold the syringe that prevents heat transfer, dispense inaccuracies, and plunger blow outs. Additionally, it provides support 800 Series Syringes to small volume plungers that are prone to bending during injection. This series of syringes is ideal for dispensing volumes from 0.5 µl up to 250 µl.
| Type | : | Standard Injection |
| Volume | : | 25 µl |
| Model | : | 802 |
| Accuracy | : | ±1% |
| Autoclavable | : | Yes |
| Gauge | : | 22s ga |
| Needle Type | : | Small Removable Needle |
| Point Style | : | 2 |
| Standard Needle Dead Volume | : | 1.13 µl |
| Syringe Type | : | Microliter |
| Temperature Range | : | 10 to 115°C |
| Termination | : | Removable Needle |
- No dead volume connection
- Use with small hub needles (2.5 to 100 µl) or Large Hub needles (250 to 10 ml)
- 10 to 12° Sharp, beveled, curved non-coring needle
