Caframo BDC1850
Share
  1. pin-int
Email Print

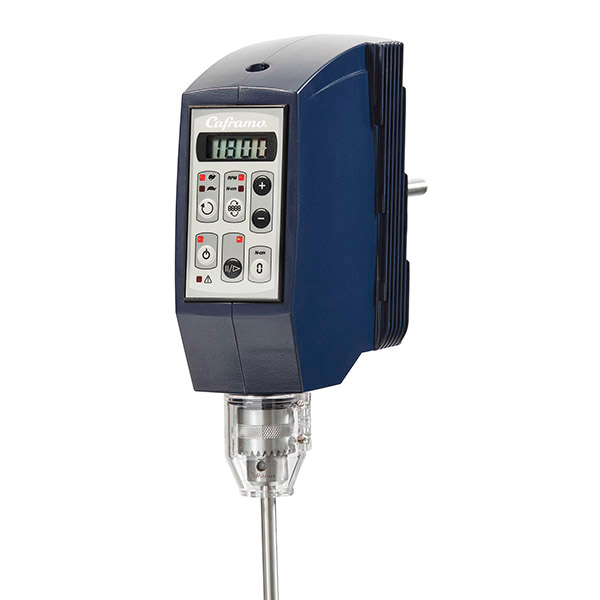

Caframo BDC1850 Model Cast Aluminum Housing Ultra Torque Overhead Stirrer, 80 L, 12 to 1800 rpm

Ultra Torque Overhead Stirrer, 80 L, Cast Aluminum Housing, 12 to 1800 rpm, BDC1850 Model, 568 Ncm Torque, 90,000 mPas Viscosity, 120 V, 60 Hz, 150 W, Torque Display, 5 to 40°C Ambient Temperature, 80% Relative Humidity, Clockwise Only Rotation

  • Manufacturer Part No: BDC1850
  • SECO Part No: 22-2160-01
  • Sold As:
  • Availability: loading

Caframo's Ultra Torque 1850 lives upto its name, delivering high torque mixing action within the footprint of a bench top overhead stirrer. This model is a proven performer for cream and gel formulations, paint grinds, premixes, and small scale production batches. The TENV housing and quality construction are a match in industrial, food, and pharma manufacturing environments. You are guaranteed to get more power out of your Caframo stirrer. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty.

Torque : High
Speed : 12 to 1800 rpm
Volume Maximum : 80 L
Viscosity Maximum : 90000 cP
Torque Maximum : 568 Ncm
Horse Power : 1/5
Output Power : 150 w
Speed Display : Yes
Speed - High Range : 360 to 1800 rpm
Speed - Low Range : 12 to 360 rpm
Speed Accuracy : ±1 rpm or ±1% of Reading
Torque Display : Yes
Torque Maximum - Low Speed : 568 Ncm (50 in-lbs = 800 in-oz)
Torque Maximum - High Speed : 114 Ncm (10 in-lbs = 160 in-oz)
Torque Accuracy : ± 12 Ncm (± 1 in-lb) or ± 5% of reading
Zero Torque : Yes
Timer : No
Through Shaft : Yes
Rotation Direction : Clockwise Only
Ambient Temperature : 5 to 40°C
Relative Humidity : 0.8
Warranty : 3 years
Material : Cast Aluminum Housing
Includes : Support Rod, Chuck, Chuck Key, Chuck Guard, Grounded North American Power Cord and Printed Manual
Chuck and Shaft Guard : Yes
Chuck Maximum Shaft Diameter : 10 mm
  • Brushless DC motor
  • Totally enclosed metal housing
  • Smart two-speed transmission
  • Through shaft
  • Chuck guard included
  • High efficiency (less heat)
  • Protection from dust and product splashing
  • Precise speed adjustment and speed maintenance as viscosity changes
  • Transmission selects high-torque or high-speed range
  • Easy impeller adjustment saves time
  • Safely encloses spinning chuck to protect user
  • Protects chuck from splashes
  • CSA Listed to Canada and US Standards
