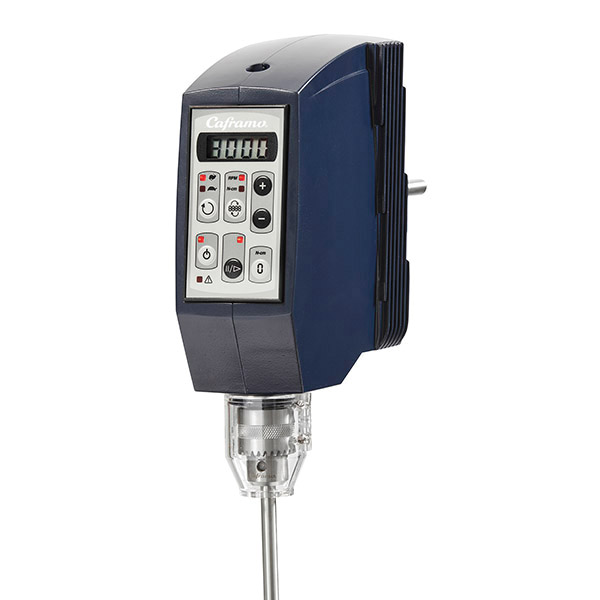

Caframo BDC3030 Model Cast Aluminum Housing Universal Overhead Stirrer, 60 L, 20 to 3000 rpm

Universal Overhead Stirrer, 60 L, Cast Aluminum Housing, 20 to 3000 rpm, BDC3030 Model, 341 Ncm Torque, 50,000 mPas Viscosity, 120 V, 50/60 Hz, 150 W, Torque Display, 5 to 40°C Ambient Temperature, 80% Relative Humidity, Clockwise Only Rotation

  • Manufacturer Part No: BDC3030
  • SECO Part No: 22-2160-02
  • Sold As:
  • Availability: loading

The perfect combination of higher torque and higher speed, Caframo's universal 3030 offers versatility to conquer the widest range of applications by a bench top stirrer. From larger batches of buffers and media to lotions and slurries, this stirrer will exceed your expectations. Ideal for workplaces with changing mixing needs as the business evolves, the 3030 will provide the most value for your overhead stirrer investment. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty.

Torque : High
Speed : 20 to 3000 rpm
Volume Maximum : 60 L
Viscosity Maximum : 50000 cP
Torque Maximum : 341 Ncm
Horse Power : 1/5
Output Power : 150 w
Speed Display : Yes
Speed - High Range : 600 to 3000 rpm
Speed - Low Range : 20 to 600 rpm
Speed Accuracy : ±1 rpm or ±1% of Reading
Torque Display : Yes
Torque Maximum - Low Speed : 341 Ncm (30 in-lbs = 480 in-oz)
Torque Maximum - High Speed : 68 Ncm (6 in-lbs = 96 in-oz)
Torque Accuracy : ± 12 Ncm (± 1 in-lb) or ± 5% of reading
Zero Torque : Yes
Timer : No
Through Shaft : Yes
Rotation Direction : Clockwise Only
Ambient Temperature : 5 to 40°C
Relative Humidity : 0.8
Warranty : 3 years
Material : Cast Aluminum Housing
Includes : Support Rod, Chuck, Chuck Key, Chuck Guard, UK and EU Cord Sets and Printed Manual
Chuck and Shaft Guard : Yes
Chuck Maximum Shaft Diameter : 10 mm
  • Brushless DC motor
  • Totally enclosed metal housing
  • Smart two-speed transmission
  • High efficiency (less heat)
  • Protection from dust and product splashing
  • Precise speed adjustment and speed maintenance as viscosity changes
  • Transmission selects high-torque or high-speed range
  • Easy impeller adjustment saves time
  • Safely encloses spinning chuck to protect user
  • Protects chuck from splashes
  • CSA Listed to Canada and US Standards
